7029-2553

Active

Amphenol SV Microwave

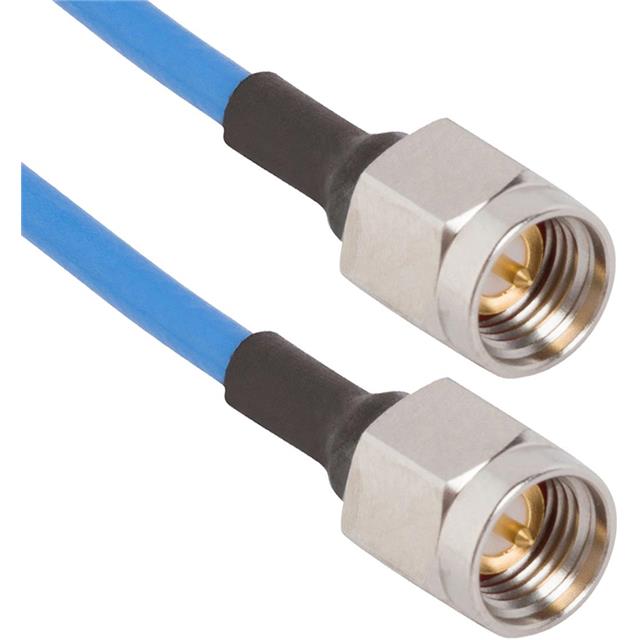

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

7029-2553

Active

Amphenol SV Microwave

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7029-2553

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	TFlex-405
Color	Blue
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMA

7029 Series

Part	Features	Frequency - Max [Max]	Cable Type	Color	Length	Length	1st Connector	2nd Connector	2nd Connector Mounting Type	Overall Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Style	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender
Amphenol SV Microwave 7029-2560	Shielded	18 GHz	0.047" Flexible Cable	Blue	24 "	609.6 mm	SMA Jack	SMPM Jack	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMPM	Female	Free Hanging (In-Line)	Female
Amphenol SV Microwave 7029-2556	Shielded	18 GHz	0.047" Flexible Cable	Blue	12 "	304.8 mm	SMA Plug	SMA Plug	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMA	Male	Free Hanging (In-Line)	Male
Amphenol SV Microwave 7029-3246	Shielded	18 GHz	TFlex-405	Blue	6 in	152.4 mm	SMPM Jack	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMPM	Male	Free Hanging (In-Line)	Female
Amphenol SV Microwave 7029-2554	Shielded	18 GHz	TFlex-405	Blue	24 "	609.6 mm	SMA Plug	SMA Plug	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMA	Male	Free Hanging (In-Line)	Male
Amphenol SV Microwave 7029-3245	Shielded	18 GHz	0.047" Flexible Cable	Blue	12 "	304.8 mm	SMPM Jack	SMA Plug Right Angle	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMPM	Male	Free Hanging (In-Line)	Female
Amphenol SV Microwave 7029-2553	Shielded	18 GHz	TFlex-405	Blue	12 "	304.8 mm	SMA Plug	SMA Plug	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMA	Male	Free Hanging (In-Line)	Male
Amphenol SV Microwave 7029-2559	Shielded	18 GHz	0.047" Flexible Cable	Blue	12 "	304.8 mm	SMA Jack	SMPM Jack	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMPM	Female	Free Hanging (In-Line)	Female
Amphenol SV Microwave 7029-2555	Shielded	18 GHz	0.047" Flexible Cable	Blue	6 in	152.4 mm	SMA Plug	SMA Plug	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMA	Male	Free Hanging (In-Line)	Male
Amphenol SV Microwave 7029-2562	Shielded	18 GHz	TFlex-405	Blue	12 "	304.8 mm	SMA Jack	SMPM Jack	Free Hanging (In-Line)	50 Ohms	-65 ░C	165 °C	SMA to SMPM	Female	Free Hanging (In-Line)	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 83.34
		10	$ 76.48
		25	$ 73.54
		50	$ 71.09
		100	$ 67.16

Description

General part information

7029 Series

Cable Assembly Coaxial SMA to SMA TFlex-405 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
