1289330

Active

Phoenix Contact

CABLE: EMOBILITY; 1X10AWG,4X12AWG,5X22AWG; 250V; 12KW; IP44; 5.5M

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE: EMOBILITY; 1X10AWG,4X12AWG,5X22AWG; 250V; 12KW; IP44; 5.5M

Technical Specifications

Parameters and characteristics for this part

Part	Approved Countries	Style	Color	1st Connector	Approval Agency Marking	Shielding	Number of Conductors	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Voltage Rating	2nd Connector	Length [x]	Length [x]	Features	Wire Gauge	Length
Phoenix Contact 1628419	Canada United States	Male Plug to Leads	Black	IEC 62196-2 (Type 1)	cURus	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C	10 AWG 18 AWG	30 VAC 250 VAC	Cable
Phoenix Contact 1623909	Austria Belgium Denmark Finland Germany Netherlands Norway Sweden	Male Plug to Female Plug	Black	IEC 62196-2 (Type 1)	CB VDE	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C		30 VAC 250 VAC	IEC 62196-2 (Type 2)	4 m	13.12 ft	Charging Cover Electric Vehicles
Phoenix Contact 1289330		Male Plug to Leads	Black	IEC 62196-2 (Type 1)		Unshielded	2 3	2 A 48 A	50 °C	-30 ░C		30 VAC 250 VAC	Cable	5.49 m	18 ft		10 AWG 12 AWG 22 AWG
Phoenix Contact 1628421	Canada United States	Male Plug to Leads	Black	IEC 62196-2 (Type 1)	cURus	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C	10 AWG 18 AWG	30 VAC 250 VAC	Cable	4 m	13.12 ft	Charging Cover Electric Vehicles
Phoenix Contact 1628418	Canada United States	Male Plug to Leads	Black	IEC 62196-2 (Type 1)	cURus	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C	10 AWG 18 AWG	30 VAC 250 VAC	Cable		39.37 ft	Charging Cover Electric Vehicles Locking		12 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 151.38
TME	N/A	1	$ 284.48
		3	$ 265.51

General part information

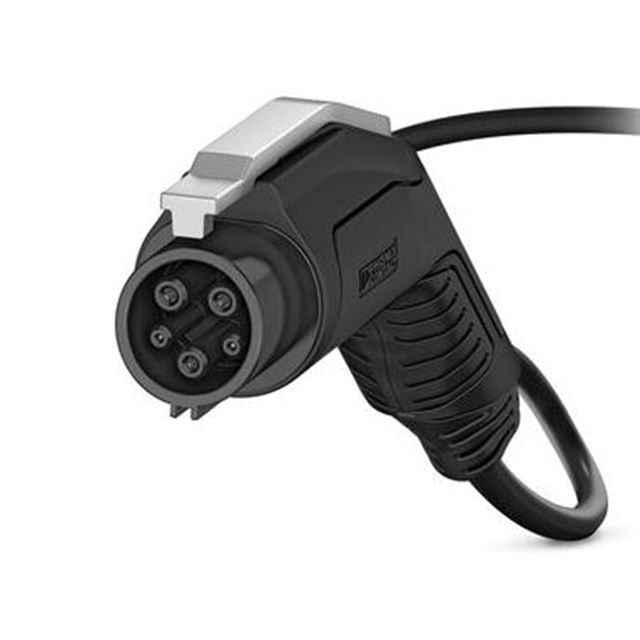

18.00' (5.49m) Power Cord Black IEC 62196-2 (Type 1) To Cable
