1628421

Active

Phoenix Contact

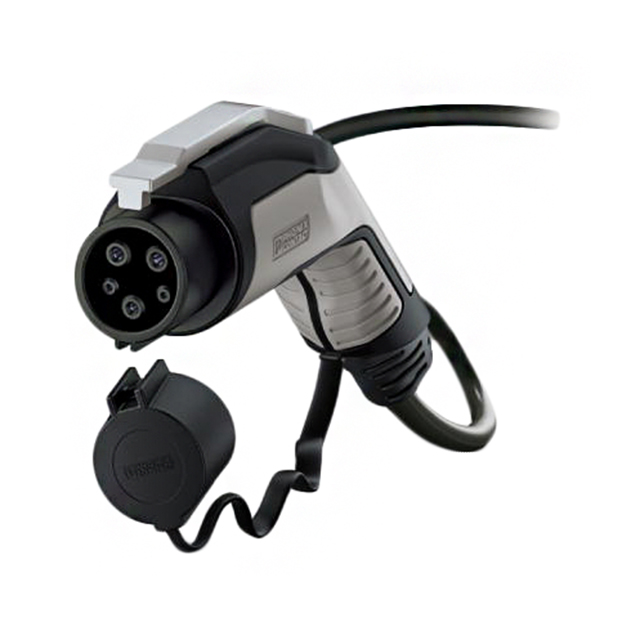

CABLE: EMOBILITY; 1X18AWG,3X10AWG; 250V; 8KW; IP44; SINGLE-PHASE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE: EMOBILITY; 1X18AWG,3X10AWG; 250V; 8KW; IP44; SINGLE-PHASE

Technical Specifications

Parameters and characteristics for this part

Specification	1628421

1st Connector	IEC 62196-2 (Type 1)
2nd Connector	Cable
Approval Agency Marking	cURus
Approved Countries	United States, Canada
Color	Black
Current Rating (Amps)	32 A, 2 A
Features	Electric Vehicles, Charging, Cover
Length [x]	4 m
Length [x]	13.12 ft
Number of Conductors	3, 2
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Shielding	Unshielded
Style	Male Plug to Leads
Voltage Rating	30 VAC, 250 VAC
Wire Gauge	18 AWG, 10 AWG

Part	Approved Countries	Style	Color	1st Connector	Approval Agency Marking	Shielding	Number of Conductors	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Voltage Rating	2nd Connector	Length [x]	Length [x]	Features	Wire Gauge	Length
Phoenix Contact 1628419	Canada United States	Male Plug to Leads	Black	IEC 62196-2 (Type 1)	cURus	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C	10 AWG 18 AWG	30 VAC 250 VAC	Cable
Phoenix Contact 1623909	Austria Belgium Denmark Finland Germany Netherlands Norway Sweden	Male Plug to Female Plug	Black	IEC 62196-2 (Type 1)	CB VDE	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C		30 VAC 250 VAC	IEC 62196-2 (Type 2)	4 m	13.12 ft	Charging Cover Electric Vehicles
Phoenix Contact 1289330		Male Plug to Leads	Black	IEC 62196-2 (Type 1)		Unshielded	2 3	2 A 48 A	50 °C	-30 ░C		30 VAC 250 VAC	Cable	5.49 m	18 ft		10 AWG 12 AWG 22 AWG
Phoenix Contact 1628421	Canada United States	Male Plug to Leads	Black	IEC 62196-2 (Type 1)	cURus	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C	10 AWG 18 AWG	30 VAC 250 VAC	Cable	4 m	13.12 ft	Charging Cover Electric Vehicles
Phoenix Contact 1628418	Canada United States	Male Plug to Leads	Black	IEC 62196-2 (Type 1)	cURus	Unshielded	2 3	2 A 32 A	50 °C	-30 ░C	10 AWG 18 AWG	30 VAC 250 VAC	Cable		39.37 ft	Charging Cover Electric Vehicles Locking		12 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 135.00
TME	N/A	1	$ 221.58
		3	$ 206.81

General part information

13.12' (4.00m) Power Cord Black IEC 62196-2 (Type 1) To Cable
