HB16SKW01-5C-AB

Active

NKK Switches

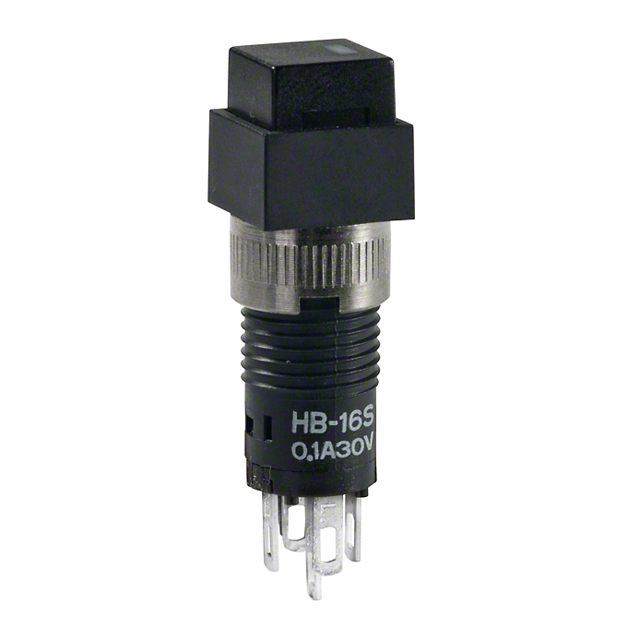

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HB16SKW01-5C-AB

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB16SKW01-5C-AB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB16SKW01 Series

Part	Switch Function	Termination Style	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - AC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Mechanical Life	Color - Actuator/Cap	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches HB16SKW01-E	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Standard	70 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Yellow	Panel Mount Front
NKK Switches HB16SKW01-5C-CB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Red	Panel Mount Front	2.1 VDC	LED Red
NKK Switches HB16SKW01-6F-JB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Clear	Panel Mount Front	3.5 VDC	Green LED
NKK Switches HB16SKW01-F	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Standard	70 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Green	Panel Mount Front
NKK Switches HB16SKW01-6B-JB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Clear	Panel Mount Front	3.3 VDC	LED White
NKK Switches HB16SKW01-B	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Standard	70 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	White	Panel Mount Front
NKK Switches HB16SKW01-5C-AB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Black	Panel Mount Front	2.1 VDC	LED Red
