HB16SKW01-F

Active

NKK Switches

MINIATURE PUSHBUTTON/ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

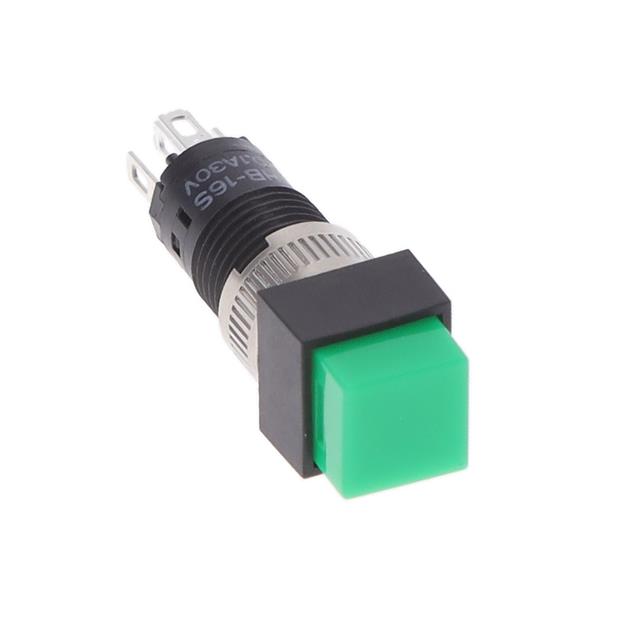

HB16SKW01-F

Active

NKK Switches

MINIATURE PUSHBUTTON/ILLUMINATED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB16SKW01-F

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB16SKW01 Series

Part	Switch Function	Termination Style	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - AC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Mechanical Life	Color - Actuator/Cap	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches HB16SKW01-E	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Standard	70 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Yellow	Panel Mount Front
NKK Switches HB16SKW01-5C-CB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Red	Panel Mount Front	2.1 VDC	LED Red
NKK Switches HB16SKW01-6F-JB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Clear	Panel Mount Front	3.5 VDC	Green LED
NKK Switches HB16SKW01-F	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Standard	70 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Green	Panel Mount Front
NKK Switches HB16SKW01-6B-JB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Clear	Panel Mount Front	3.3 VDC	LED White
NKK Switches HB16SKW01-B	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Standard	70 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	White	Panel Mount Front
NKK Switches HB16SKW01-5C-AB	On-On	Solder Lug	Button Square	SPDT	8 mm	No Marking	30 V	Illuminated Standard	50 °C	-25 °C	100 mA	50000 Cycles	30 V	100000 Cycles	Black	Panel Mount Front	2.1 VDC	LED Red
