0190850003

Obsolete

Molex

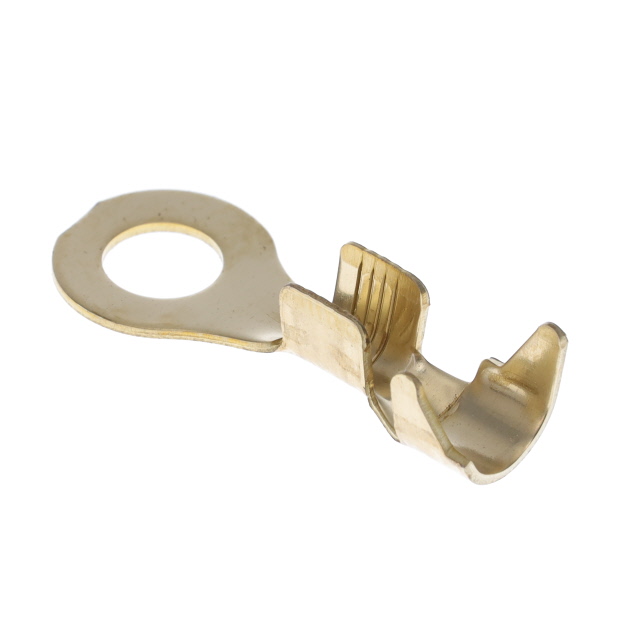

CONN RING CIRC 14-18AWG #10

Search across all available documentation for this part.

Obsolete

Molex

CONN RING CIRC 14-18AWG #10

Technical Specifications

Parameters and characteristics for this part

Specification	0190850003

null

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Insulation	Contact Material	Length - Overall	Length - Overall	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Thickness	Thickness	Terminal Type	Mounting Type	Termination	Stud/Tab Size
Molex 0190850009	14 AWG	18 AWG	Tin	Non-Insulated	Steel	0.949 in	24.1 mm	10 Stud	0.385 in	9.78 mm	0.58 mm	0.023 in	Circular	Free Hanging (In-Line)	Crimp
Molex 0190850004	14 AWG	18 AWG	Tin	Non-Insulated	Brass	0.949 in	24.1 mm	6 Stud	0.385 in	9.78 mm	0.58 mm	0.023 in	Circular	Free Hanging (In-Line)	Crimp
Molex 0190850008	14 AWG	18 AWG	Tin	Non-Insulated	Steel	0.949 in	24.1 mm		0.385 in	9.78 mm	0.58 mm	0.023 in	Circular	Free Hanging (In-Line)	Crimp	8 Stud
Molex 0190850006	14 AWG	18 AWG	Tin	Non-Insulated	Brass	0.949 in	24.1 mm	10 Stud	0.385 in	9.78 mm	0.58 mm	0.023 in	Circular	Free Hanging (In-Line)	Crimp
Molex 0190850003

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ring Terminal Connector

Technical documentation and resources
