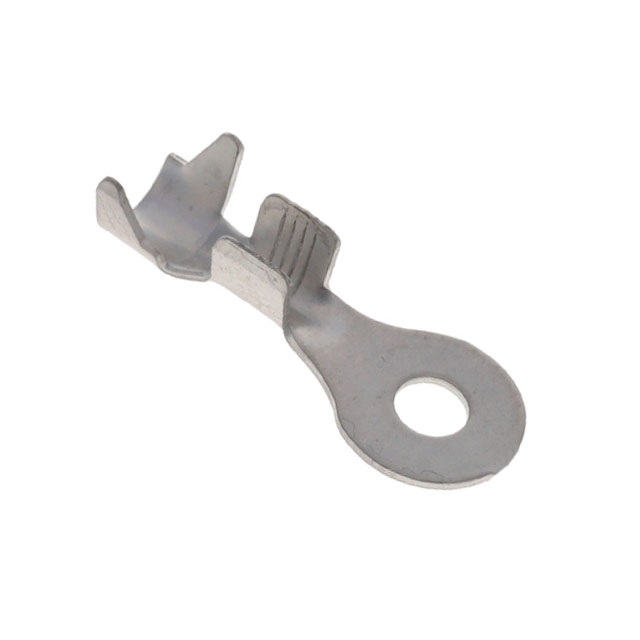

0190850004
ActiveMolex
CONN RING CIRC 14-18AWG #6 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0190850004
ActiveMolex
CONN RING CIRC 14-18AWG #6 CRIMP
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190850004 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.949 in |
| Length - Overall | 24.1 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.58 mm |
| Thickness | 0.023 in |
| Width - Outer Edges | 0.385 in |
| Width - Outer Edges | 9.78 mm |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.28 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 2000 | $ 0.10 | ||
| 4000 | $ 0.09 | |||
| 6000 | $ 0.09 | |||
| 10000 | $ 0.09 | |||
| 14000 | $ 0.09 | |||
Description
General part information
019085 Series
Ring Terminal Connector 6 Stud Circular 14-18 AWG Crimp
