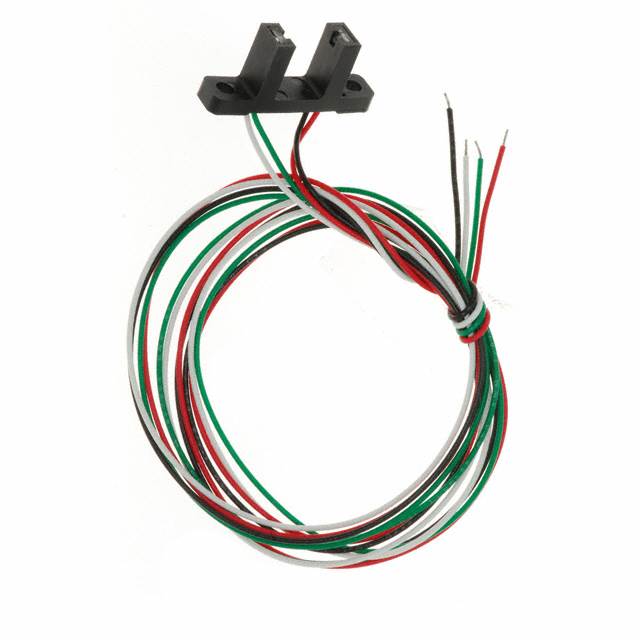

OPB815WZ

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB815WZ

Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Pre-Wired
Sensing Distance	9.53 mm
Sensing Distance	0.375 in
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - DC Forward (If) (Max)	Sensing Method	Sensing Distance	Sensing Distance	Type	Mounting Type	Package / Case	Output Configuration
TT Electronics/Optek Technology OPB815L	-40 °C	80 C	30 V	50 mA	Through-Beam	9.53 mm	0.375 in	Unamplified	Through Hole	PCB Mount	Phototransistor
TT Electronics/Optek Technology OPB815WZ	-40 °C	80 C	30 V	50 mA	Through-Beam	9.53 mm	0.375 in	Unamplified	Chassis Mount	Module Pre-Wired	Phototransistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.375" (9.53mm) Phototransistor Module, Pre-Wired
