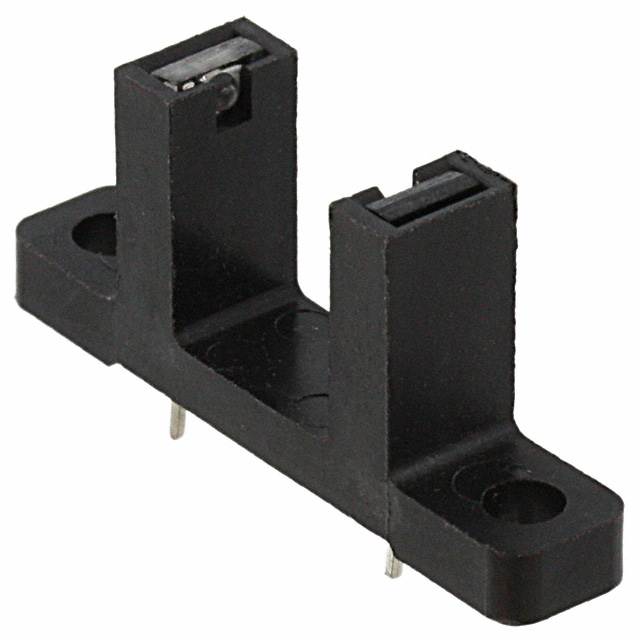

OPB815L
ActiveTT Electronics/Optek Technology
SENSOR OPT SLOT PHOTOTRAN PCB MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB815L |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Phototransistor |
| Package / Case | PCB Mount |
| Sensing Distance | 9.53 mm |
| Sensing Distance | 0.375 in |
| Sensing Method | Through-Beam |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.34 | |
| 100 | $ 3.13 | |||
| 250 | $ 3.01 | |||
| 500 | $ 2.92 | |||
| 1000 | $ 2.81 | |||
| 2500 | $ 2.75 | |||
Description
General part information
OPB815 Series
Optical Sensor Through-Beam 0.375" (9.53mm) Phototransistor PCB Mount
