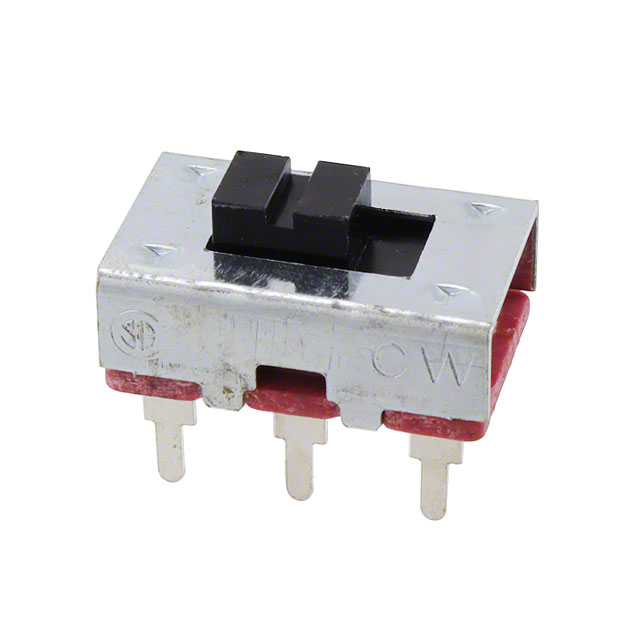

GF-1326-0013

Active

CW Industries

SWITCH SLIDE DPDT 13A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE DPDT 13A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Switch Travel	Contact Timing	Mechanical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Length [x]	Electrical Life	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Actuator Material	Circuit	Termination Style	Contact Material	Switch Travel [custom]	Features	Mounting Type
CW Industries GF-1326-0007	Silver	4.01 mm	Not Specified	10000 Steps	125 VDC	104 °C	-10 °C	Standard	8.74 mm	6000 Cycles	13 A 500 mA	On-On	125 V	Nylon 6/6 Polyamide (PA66)	DPDT	Solder Lug	Copper
CW Industries GF-1326-0008	Silver		Not Specified	10000 Steps	125 VDC	104 °C	-10 °C	Standard	8.74 mm	6000 Cycles	13 A 500 mA	On-On	125 V	Nylon 6/6 Polyamide (PA66)	DPDT	Solder Lug	Copper	3.89 mm
CW Industries GF-1326-0009	Silver	4.01 mm	Not Specified	10000 Steps	125 VDC	104 °C	-10 °C	Screwdriver Slot	3.18 mm	6000 Cycles	13 A 500 mA	On-On (Line Voltage Selector)	125 V	Nylon 6/6 Polyamide (PA66)	DPDT	Solder Lug	Copper		No Marking
CW Industries GF-1326-0013	Silver		Not Specified	10000 Steps	125 VDC	104 °C	-10 °C	Screwdriver Slot	3.18 mm	6000 Cycles	13 A 500 mA	On-On (Line Voltage Selector)	125 V	Nylon 6/6 Polyamide (PA66)	DPDT	PC Pin	Copper	3.89 mm	No Marking	Through Hole
CW Industries GF-1326-0000	Silver	4.01 mm	Not Specified	10000 Steps	125 VDC	104 °C	-10 °C	Standard	8.74 mm	6000 Cycles	13 A 500 mA	On-On	125 V	Nylon 6/6 Polyamide (PA66)	DPDT	Solder Lug	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch DPDT Through Hole
