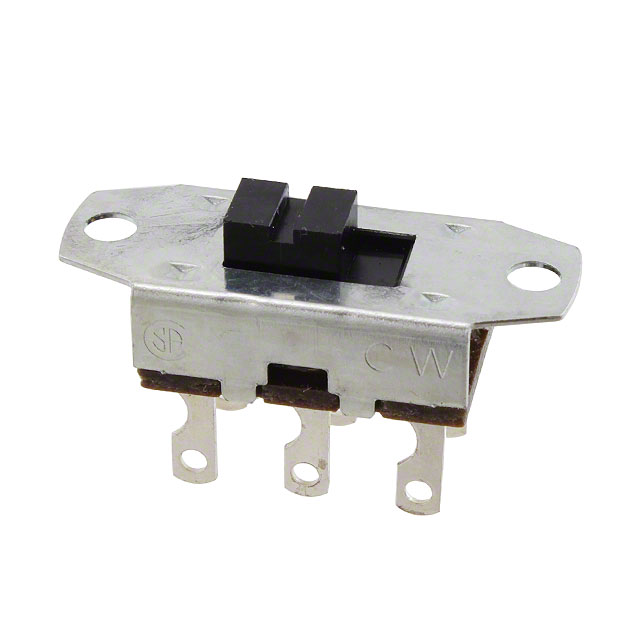

GF-1326-0009
ActiveCW Industries
SWITCH SLIDE DPDT 13A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GF-1326-0009
ActiveCW Industries
SWITCH SLIDE DPDT 13A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-1326-0009 |
|---|---|
| Actuator Length [x] | 3.18 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Screwdriver Slot |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 13 A, 500 mA |
| Electrical Life | 6000 Cycles |
| Features | No Marking |
| Mechanical Life | 10000 Steps |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On (Line Voltage Selector) |
| Switch Travel | 4.01 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.55 | |
| 10 | $ 2.07 | |||
| 25 | $ 1.91 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.54 | |||
| 500 | $ 1.44 | |||
| 1000 | $ 1.35 | |||
| 2500 | $ 1.23 | |||
| 5000 | $ 1.15 | |||
Description
General part information
GF-1326 Series
Slide Switch DPDT Panel Mount
Documents
Technical documentation and resources
No documents available
