901310131

Active

Molex

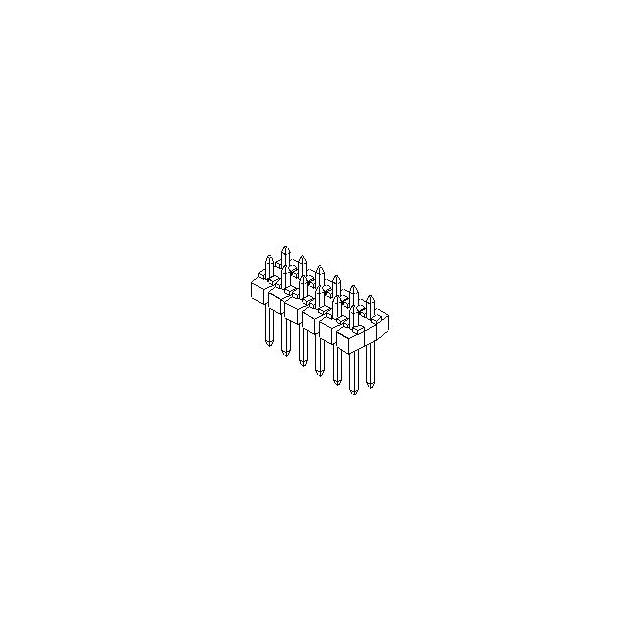

2.54MM PITCH C-GRID III HEADER, DUAL ROW, VERTICAL, 22 CIRCUITS, TIN (SN) PLATING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing Packaging Design Drawing +2

901310131

Active

Molex

2.54MM PITCH C-GRID III HEADER, DUAL ROW, VERTICAL, 22 CIRCUITS, TIN (SN) PLATING

Deep-Dive with AI

DocumentsDrawing Packaging Design Drawing +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901310131

null

90131 Series

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 40 Circuits, 0.76µm Gold (Au) Selective Plating

Part	Contact Material	Shrouding	Material Flammability Rating	Number of Rows	Overall Contact Length	Overall Contact Length	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Applications	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Style	Insulation Color
Molex 901310940
Molex 901310131
Molex 901310783
Molex 0901310766	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	12	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black
Molex 901310144
Molex 0901310772	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	24	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black
Molex 901310950
Molex 901310960
Molex 0901310774	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	28	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black
Molex 0901310773	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	26	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 1.46
		250	$ 1.40
		1000	$ 1.37

Description

General part information

90131 Series

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 40 Circuits, 0.76µm Gold (Au) Selective Plating

Documents

Technical documentation and resources

Drawing

Sales Drawing PDF

Packaging Design Drawing

Application Specification

Application Specifications PDF

Product Specification

Product Specification PDF
