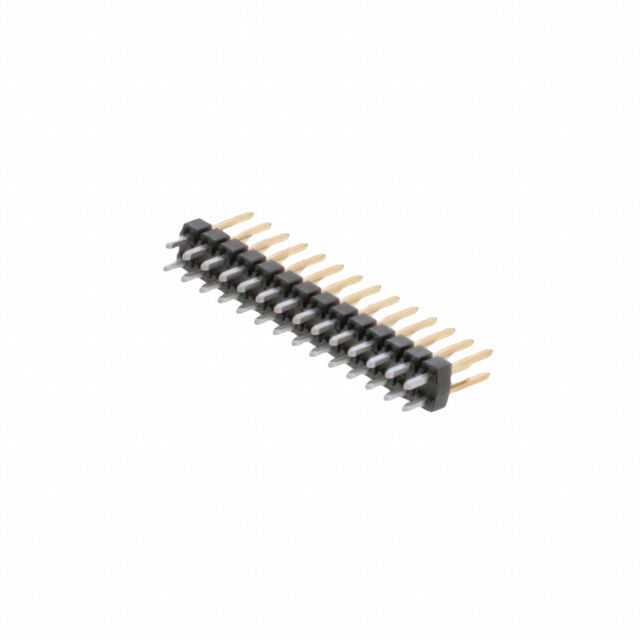

0901310774

Active

Molex

CONN HEADER VERT 28POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0901310774

Active

Molex

CONN HEADER VERT 28POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0901310774

Applications	Automotive, General Purpose
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.478 in
Overall Contact Length	12.15 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

90131 Series

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 40 Circuits, 0.76µm Gold (Au) Selective Plating

Part	Contact Material	Shrouding	Material Flammability Rating	Number of Rows	Overall Contact Length	Overall Contact Length	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Applications	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Style	Insulation Color
Molex 901310940
Molex 901310131
Molex 901310783
Molex 0901310766	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	12	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black
Molex 901310144
Molex 0901310772	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	24	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black
Molex 901310950
Molex 901310960
Molex 0901310774	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	28	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black
Molex 0901310773	Brass	Unshrouded	UL94 V-0	2	0.478 in	12.15 mm	Solder	15 µin	0.38 µm	3 µm	118.1 µin	0.114 in	2.9 mm	All	Tin	Square	2.54 mm	0.1 in	Push-Pull	Breakaway Header	Polyester Glass Filled	0.1 in	2.54 mm	26	Gold	0.098 in	2.5 mm	Automotive General Purpose	0.266 in	6.75 mm	Through Hole	Male Pin	Board to Cable/Wire	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.40
		10	$ 4.16
		100	$ 3.33
		500	$ 2.93
		1000	$ 2.79

Description

General part information

90131 Series

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 40 Circuits, 0.76µm Gold (Au) Selective Plating
