0192760004

Active

Molex

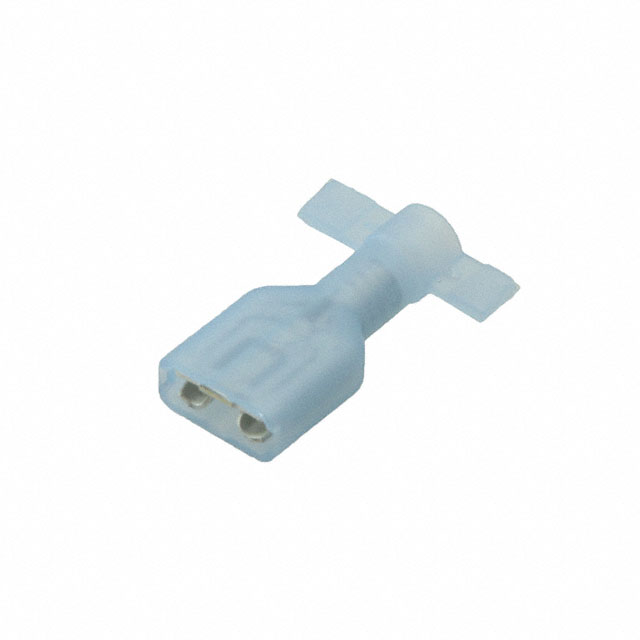

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 21.8MM TIN QUIXON™ T/R

Search across all available documentation for this part.

Active

Molex

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 21.8MM TIN QUIXON™ T/R

Technical Specifications

Parameters and characteristics for this part

Specification	0192760004

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	0.16 in
Insulation Diameter [diameter]	4.06 mm
Length - Overall [x]	0.86 "
Length - Overall [x]	21.84 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Width	Tab Width	Color	Insulation	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Type	Contact Finish	Terminal Type	Termination	Gender	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall
Molex 0192760004	0.16 in	4.06 mm	6.35 mm	0.25 in	Blue	Non-Mating End Insulated	0.032 in	0.81 mm	0.86 "	21.84 mm	Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass
Molex 0192760007	0.235 in	5.97 mm	6.35 mm	0.25 in	Yellow	Non-Mating End Insulated	0.032 in	0.81 mm	1.03 in		Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass	12 AWG	10 AWG	26.16 mm
Molex 0192760001	0.135 in	3.43 mm	6.35 mm	0.25 in	Red	Non-Mating End Insulated	0.032 in	0.81 mm	0.86 "	21.84 mm	Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass	22 AWG	17.5 AWG
Molex 0192760008	0.235 in	5.97 mm	6.35 mm	0.25 in	Yellow	Fully Insulated	0.032 in	0.81 mm	1.03 in		Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass	12 AWG	10 AWG	26.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated
