0192760007

Active

Molex

CONN QC RCPT 10-12AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT 10-12AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0192760007

Color	Yellow
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	5.97 mm
Insulation Diameter [diameter]	0.235 in
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Width	Tab Width	Color	Insulation	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Type	Contact Finish	Terminal Type	Termination	Gender	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall
Molex 0192760004	0.16 in	4.06 mm	6.35 mm	0.25 in	Blue	Non-Mating End Insulated	0.032 in	0.81 mm	0.86 "	21.84 mm	Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass
Molex 0192760007	0.235 in	5.97 mm	6.35 mm	0.25 in	Yellow	Non-Mating End Insulated	0.032 in	0.81 mm	1.03 in		Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass	12 AWG	10 AWG	26.16 mm
Molex 0192760001	0.135 in	3.43 mm	6.35 mm	0.25 in	Red	Non-Mating End Insulated	0.032 in	0.81 mm	0.86 "	21.84 mm	Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass	22 AWG	17.5 AWG
Molex 0192760008	0.235 in	5.97 mm	6.35 mm	0.25 in	Yellow	Fully Insulated	0.032 in	0.81 mm	1.03 in		Free Hanging (In-Line)	Tin	Standard	Crimp	Female	Brass	12 AWG	10 AWG	26.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	18000	$ 0.15

General part information

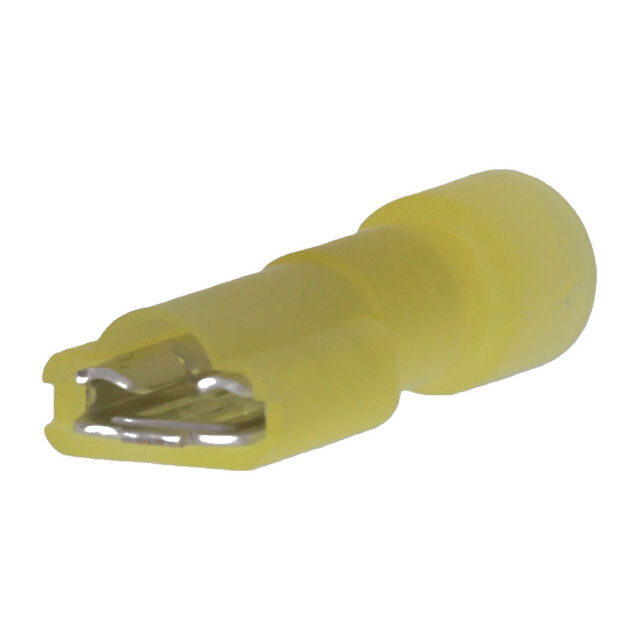

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Mating End Insulated
