C1362.21.01
ActivePrysmian Group

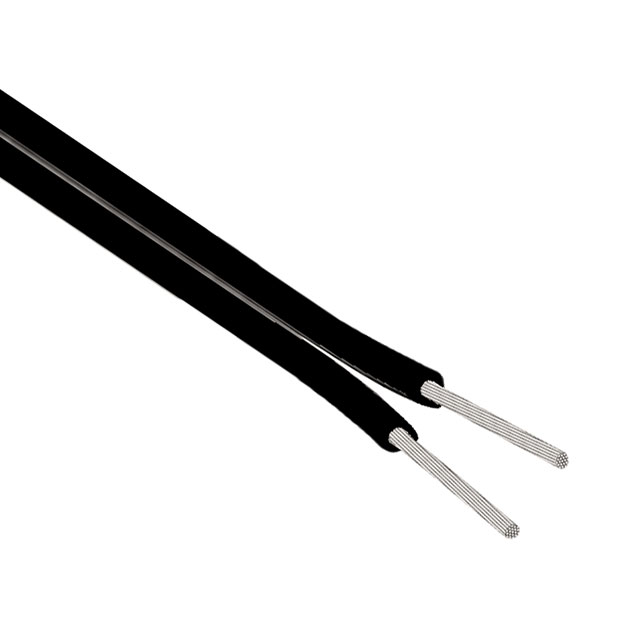

CABLE SPKR 2COND 22AWG BLK 500'
Deep-Dive with AI
Search across all available documentation for this part.
C1362.21.01
ActivePrysmian Group
CABLE SPKR 2COND 22AWG BLK 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1362.21.01 |
|---|---|
| Cable Type | Speaker |
| Conductor Material | Copper, Tinned, Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.145 in |
| Jacket (Insulation) Diameter [diameter] | 3.68 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Black |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft, 100 ft, 500 ' |
| Length [x] | 30.5 m, 152.4 m |
| Number of Conductors | 2 |
| Usage | Home, Audio-Video |
| Voltage | 120 V |
| Wire Gauge | 22 AWG |
C1362 Series
| Part | Number of Conductors | Usage | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Prysmian Group | 2 | Audio-Video Home | 22 AWG | Poly-Vinyl Chloride (PVC) | Clear | 120 V | 0.145 in | 3.68 mm | 0.02 in | 0.508 mm | Speaker | 7 | 30 AWG | Copper Bare Copper Tinned | 500 ' | 152.4 m | ||
Prysmian Group | 2 | Audio-Video Home | 22 AWG | Poly-Vinyl Chloride (PVC) | 120 V | 0.145 in | 3.68 mm | 0.02 in | 0.508 mm | Speaker | 7 | 30 AWG | Copper Bare Copper Tinned | 1000 ft | 304.8 m | |||
Prysmian Group | 2 | Audio-Video Home | 22 AWG | Poly-Vinyl Chloride (PVC) | Black | 120 V | 0.145 in | 3.68 mm | 0.02 in | 0.508 mm | Speaker | 7 | 30 AWG | Copper Bare Copper Tinned | 50 ft 100 ft 500 ' | 30.5 m 152.4 m | 1000 ft | 15.24 m 304.8 m |
Prysmian Group | 2 | Audio-Video Home | 22 AWG | Poly-Vinyl Chloride (PVC) | Clear | 120 V | 0.145 in | 3.68 mm | 0.02 in | 0.508 mm | Speaker | 7 | 30 AWG | Copper Bare Copper Tinned | 50 ft | 1000 ft | 15.24 m 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 116.48 | |
| 2 | $ 110.84 | |||
| 3 | $ 107.65 | |||
| 5 | $ 103.74 | |||
| 7 | $ 101.24 | |||
| 10 | $ 98.63 | |||
| 25 | $ 92.20 | |||
| 50 | $ 87.56 | |||
| 100 | $ 83.11 | |||
| Spool | 1 | $ 29.62 | ||
| 1 | $ 118.11 | |||
| 1 | $ 13.86 | |||
| 5 | $ 24.23 | |||
| 5 | $ 11.34 | |||
| 5 | $ 96.64 | |||
| 10 | $ 18.85 | |||
| 10 | $ 75.16 | |||
| 10 | $ 8.82 | |||
Description
General part information
C1362 Series
2 Conductor Speaker Cable Black 22 AWG 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
