Technical Specifications
Parameters and characteristics for this part
| Specification | P13-0123 |
|---|---|
| Connection Type | Sleeve S13-503 |
| Current Rating (Amps) | 3 A |
| Length - Tip | 3.35 mm |
| Length - Tip | 0.132 in |
| Material - Body | Phosphor Bronze |
| Material - Tip | Beryllium Copper, Gold Plated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Quantity | 1 Box |
| Tip Type | Spear Head |
P13 Series
| Part | Tip Type | Length - Tip | Length - Tip | Connection Type | Material - Tip | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Material - Body | Current Rating (Amps) | Quantity | Length - Tip [x] | Length - Tip [x] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Spear Head | 3.35 mm | 0.132 in | Sleeve S13-503 | Beryllium Copper Gold Plated | -40 °C | -40 °C | 85 °C | 85 °C | Phosphor Bronze | 3 A | 1 Box | ||||
Harwin Inc. | Serrated Head | Sleeve S13-503 | Beryllium Copper Gold Plated | -40 °C | -40 °C | 85 °C | 85 °C | Phosphor Bronze | 3 A | 1 Box | 3.55 mm | 0.14 in | 16.55 mm | 0.652 in | ||
Harwin Inc. | Concave Head | Sleeve S13-503 | Beryllium Copper Gold Plated | -40 °C | -40 °C | 85 °C | 85 °C | Phosphor Bronze | 3 A | 1 Box | 3.55 mm | 0.14 in | 16.55 mm | 0.652 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P13 Series

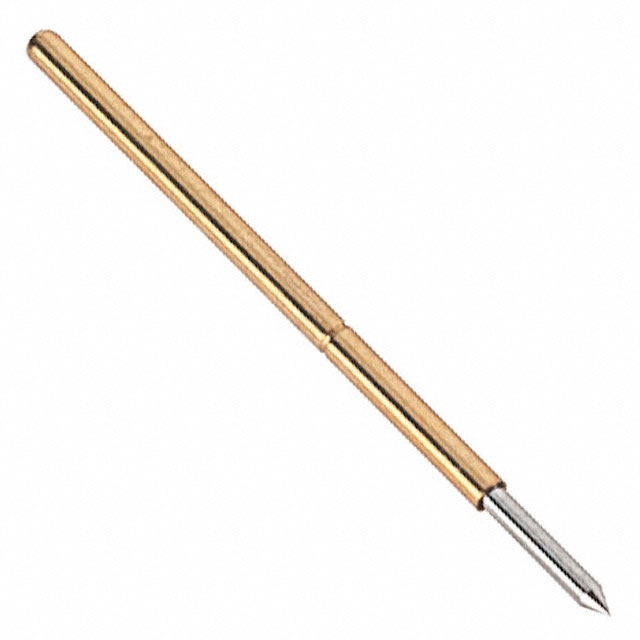

The P13-0123 is a Pointed-series 16.35mm 3A two-part Spring Loaded Contact Probe with phosphor bronze, gold finish, music wire spring, 45° spear tip style, 30milliohms contact resistance and 1.27mm centreline spacing. This probe mates with crimp, solder or wire-wrap receptacles. Ideal for ATE.
