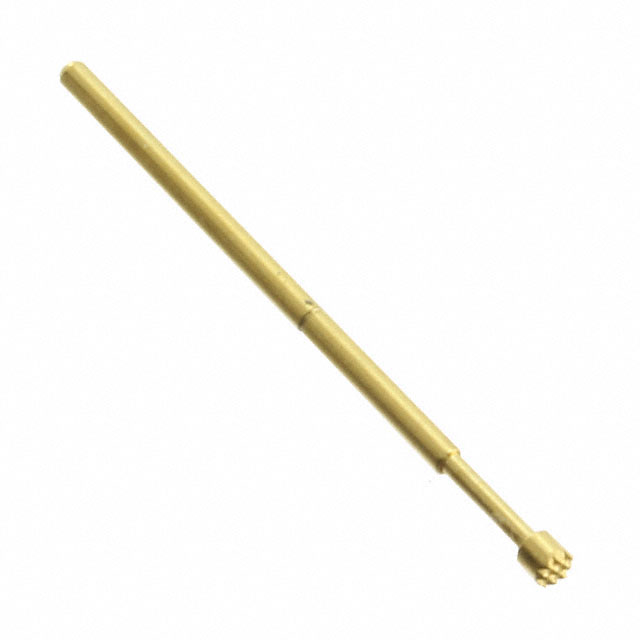

P13-4023

Active

Harwin Inc.

1.27MM CENTER TWO PART PROBE

Search across all available documentation for this part.

Active

Harwin Inc.

1.27MM CENTER TWO PART PROBE

Technical Specifications

Parameters and characteristics for this part

Specification	P13-4023

Connection Type	Sleeve S13-503
Current Rating (Amps)	3 A
Length - Overall [x]	16.55 mm
Length - Overall [x]	0.652 in
Length - Tip [x]	3.55 mm
Length - Tip [x]	0.14 in
Material - Body	Phosphor Bronze
Material - Tip	Beryllium Copper, Gold Plated
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Quantity	1 Box
Tip Type	Serrated Head

Part	Tip Type	Length - Tip	Length - Tip	Connection Type	Material - Tip	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Body	Current Rating (Amps)	Quantity	Length - Tip [x]	Length - Tip [x]	Length - Overall [x]	Length - Overall [x]
Harwin Inc. P13-0123	Spear Head	3.35 mm	0.132 in	Sleeve S13-503	Beryllium Copper Gold Plated	-40 °C	-40 °C	85 °C	85 °C	Phosphor Bronze	3 A	1 Box
Harwin Inc. P13-4023	Serrated Head			Sleeve S13-503	Beryllium Copper Gold Plated	-40 °C	-40 °C	85 °C	85 °C	Phosphor Bronze	3 A	1 Box	3.55 mm	0.14 in	16.55 mm	0.652 in
Harwin Inc. P13-1123	Concave Head			Sleeve S13-503	Beryllium Copper Gold Plated	-40 °C	-40 °C	85 °C	85 °C	Phosphor Bronze	3 A	1 Box	3.55 mm	0.14 in	16.55 mm	0.652 in
