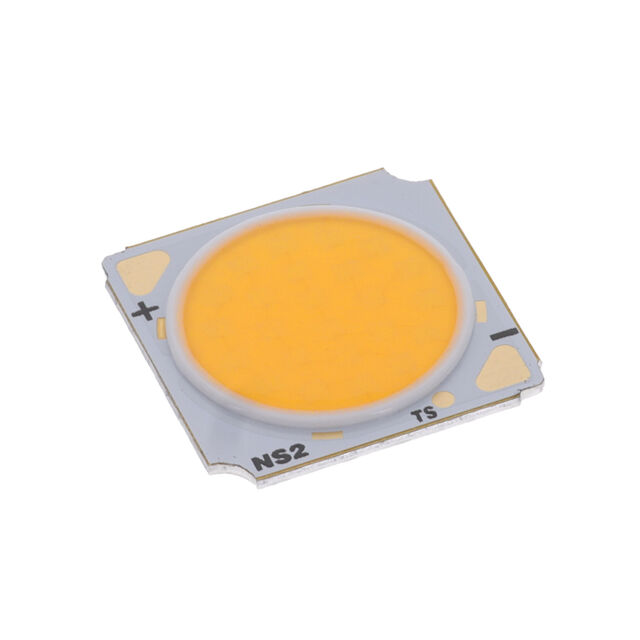

S4SM-1564409736-0B500H3S-00001
ActiveSeoul Semiconductor
LED CHIP NEUTRAL WHITE 4000K 0.86A 2-PIN SURFACE MOUNT T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S4SM-1564409736-0B500H3S-00001
ActiveSeoul Semiconductor
LED CHIP NEUTRAL WHITE 4000K 0.86A 2-PIN SURFACE MOUNT T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S4SM-1564409736-0B500H3S-00001 |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| Configuration | Square |
| CRI (Color Rendering Index) | 97 |
| Current - Max [Max] | 860 mA |
| Current - Test | 430 mA |
| Height [z] | 1.45 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 14.5 mm |
| Lumens/Watt @ Current - Test | 103 lm/W |
| Luminous Flux @ Current/Temperature | 1550 lm |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [y] | 19 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.53 | |
| 60 | $ 10.21 | |||
| 120 | $ 8.57 | |||
| 480 | $ 7.87 | |||
| 960 | $ 7.44 | |||
Description
General part information
S4SM Series
LED Lighting COBs Engines Modules Chip On Board (COB) SunLike White, Neutral Square
