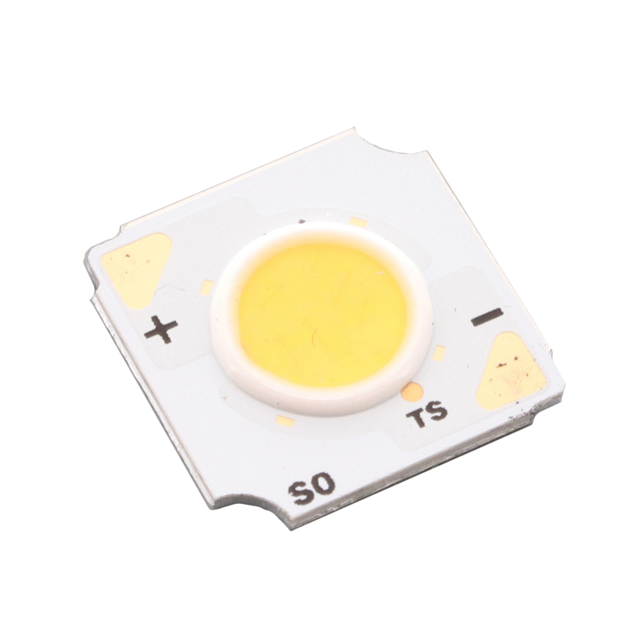

S4SM-0661509736-0A600H3S-00001
ActiveSeoul Semiconductor
LED COB SUNLIKE COOL WH SQ 5000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S4SM-0661509736-0A600H3S-00001
ActiveSeoul Semiconductor
LED COB SUNLIKE COOL WH SQ 5000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S4SM-0661509736-0A600H3S-00001 |
|---|---|
| Color | Cool, White |
| Configuration | Square |
| CRI (Color Rendering Index) | 97 |
| Current - Max [Max] | 260 mA |
| Current - Test | 170 mA |
| Height [z] | 1.45 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 6 mm Dia |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Luminous Flux @ Current/Temperature | 585 lm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 36.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.87 | |
| 10 | $ 2.74 | |||
| 90 | $ 2.30 | |||
| 180 | $ 2.55 | |||
| 540 | $ 2.37 | |||
| 1080 | $ 2.30 | |||
Description
General part information
S4SM Series
LED Lighting COBs Engines Modules Chip On Board (COB) SunLike White, Cool Square
