HQA2W085W240V-007-S

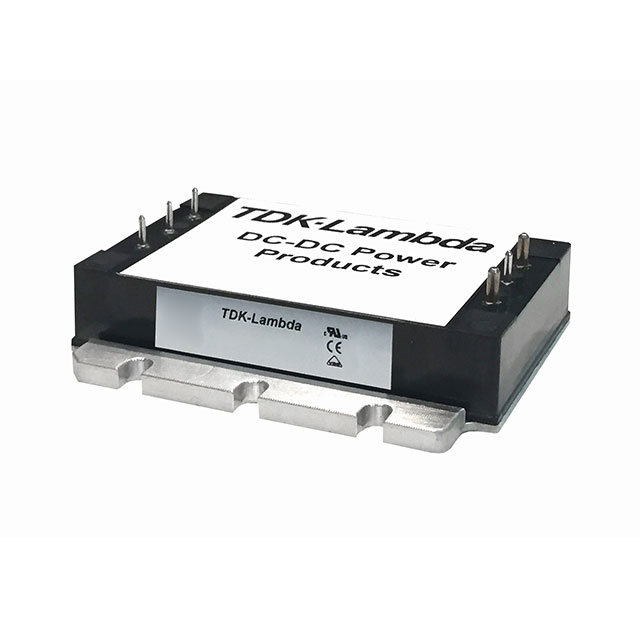

ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, DIP, 85 W, 1 OUTPUT, 24 V
Deep-Dive with AI
Search across all available documentation for this part.
HQA2W085W240V-007-S
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, DIP, 85 W, 1 OUTPUT, 24 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HQA2W085W240V-007-S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 3.5 A |
| Efficiency | 87 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 85 W |
| Size / Dimension [x] | 60.6 mm |
| Size / Dimension [x] | 2.39 " |
| Size / Dimension [y] | 55.9 mm |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HQA2W085 Series
HQA2W085W240V-007-S HQA series isolated DC-DC converter bring a high performance quarter brick in a rugged-encapsulated package for MIL-COTS applications. With its high efficiency performance, magnetic feedback loop and wide operating baseplate temperatures of -40 to 115°C, it provides high useable power at elevated temperatures and altitude for demanding and harsh environments. Various MIL-STD compliance can be supported when paired with the FQA or FQB MIL-COTS input filters. It includes overcurrent threshold, overvoltage and overtemperature protection. Application includes industrial, COTS, communication. Certified by IEC/UL/CSA/EN 62368-1, 60950-1. Designed to meet MIL-STD-461; MIL-STD-1275; MIL-STD-704; RTCA/DO-160 Sec 16-18 with FQA / FQB input filters.
