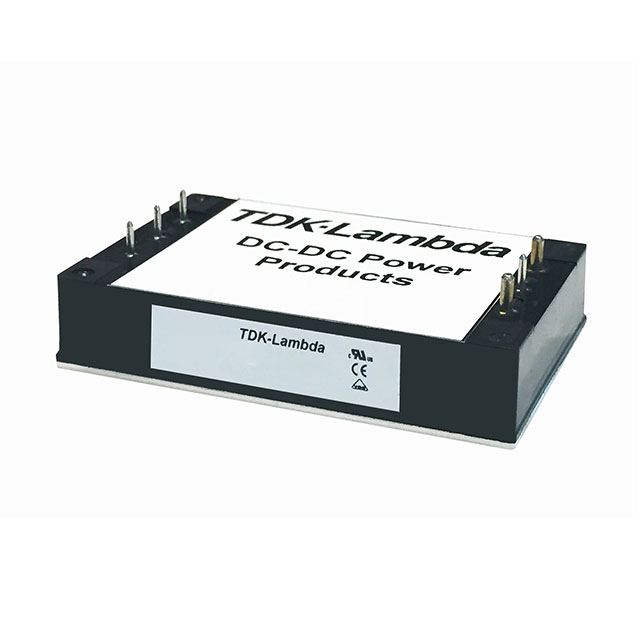

HQA2W085W120V-N07-S
ActiveTDK-LAMBDA
DC DC CONVERTER 12V 85W
Deep-Dive with AI
Search across all available documentation for this part.
HQA2W085W120V-N07-S
ActiveTDK-LAMBDA
DC DC CONVERTER 12V 85W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HQA2W085W120V-N07-S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 7.1 A |
| Efficiency | 90 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 85 W |
| Size / Dimension [x] | 60.6 mm |
| Size / Dimension [x] | 2.39 " |
| Size / Dimension [y] | 1.54 " |
| Size / Dimension [y] | 39.5 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 207.15 | |
| 10 | $ 188.32 | |||
| 25 | $ 177.80 | |||
| 50 | $ 160.62 | |||
Description
General part information
HQA2W085 Series
Isolated Module DC DC Converter 1 Output 12V 7.1A 9V - 40V Input
