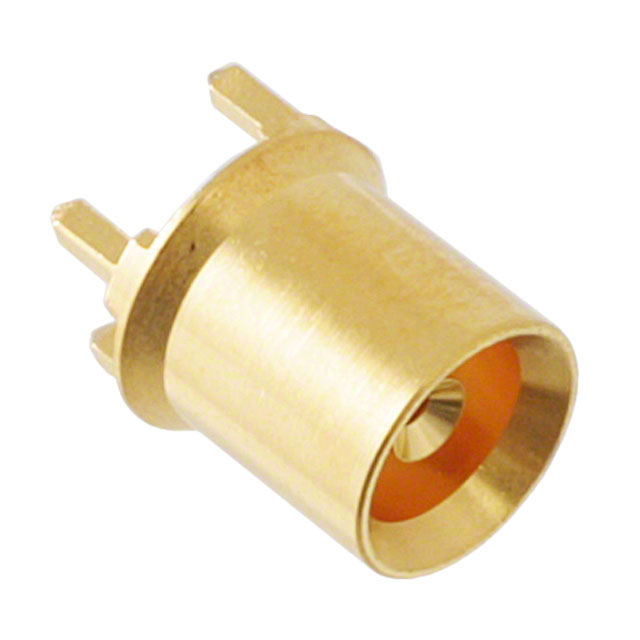

920-265J-51P - 920-265J-51P

920-265J-51P

Active
Amphenol RF

AFI STRAIGHT PCB SMOOTH BORE JACK THROUGH HOLE 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENMiscellaneous EN+2
920-265J-51P - 920-265J-51P

920-265J-51P

Active
Amphenol RF

AFI STRAIGHT PCB SMOOTH BORE JACK THROUGH HOLE 50 OHM

Deep-Dive with AI

DocumentsTechnical Data Sheet ENMiscellaneous EN+2

Technical Specifications

Parameters and characteristics for this part

Specification920-265J-51P
Body FinishGold
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleAFI
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]6000 MHz
Housing ColorGold
Impedance50 Ohms
Mounting TypeSurface Mount, Through Hole
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 8.34
10$ 7.54
25$ 7.13
50$ 6.95
100$ 6.61
300$ 5.91
500$ 5.56
1000$ 4.87
NewarkEach 100$ 6.29
250$ 6.10

Description

General part information

920-26 Series

AFI Connector Jack, Female Socket 50 Ohms Surface Mount, Through Hole Solder
