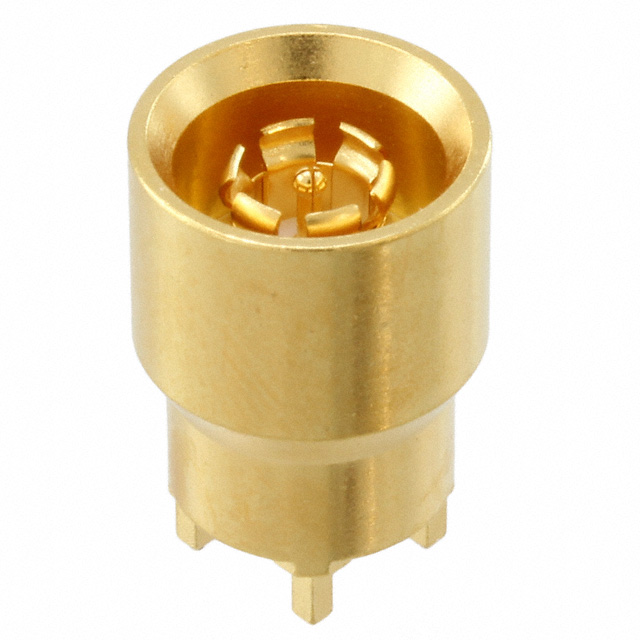

920-248P-51P

Active

Amphenol RF

CONNECTOR: COAXIAL; SOCKET; MALE; AFI; THT; ON PCBS; STRAIGHT; BRASS

Search across all available documentation for this part.

Active

Amphenol RF

CONNECTOR: COAXIAL; SOCKET; MALE; AFI; THT; ON PCBS; STRAIGHT; BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	920-248P-51P

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	AFI
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount, Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Contact Termination	Connector Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Housing Color	Body Finish	Center Contact Plating	Impedance	Frequency - Max [Max]	Dielectric Material	Shield Termination	Center Contact Material	Connector Style	Number of Ports	Mounting Type
Amphenol RF 920-265J-51P	Solder	Female Socket Jack	Brass	-65 ░C	165 °C	Snap-On	Gold	Gold	Gold	50 Ohms	6000 MHz	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	AFI	1	Surface Mount Through Hole
Amphenol RF 920-262J-51P	Solder	Female Socket Jack	Brass	-65 ░C	165 °C	Snap-On	Gold	Gold	Gold	50 Ohms	6000 MHz	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	AFI	1	Surface Mount Through Hole
Amphenol RF 920-264P-51P	Solder	Male Pin Plug	Brass	-65 ░C	165 °C	Snap-On	Gold	Gold	Gold	50 Ohms	6000 MHz	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	AFI	1	Surface Mount Through Hole
Amphenol RF 920-266J-51P	Solder	Female Socket Jack	Brass	-65 ░C	165 °C	Snap-On	Gold	Gold	Gold	50 Ohms	6000 MHz	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	AFI	1	Surface Mount Through Hole
Amphenol RF 920-263P-51P	Solder	Male Pin Plug	Brass	-65 ░C	165 °C	Snap-On	Gold	Gold	Gold	50 Ohms	6000 MHz	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	AFI	1	Surface Mount Through Hole
Amphenol RF 920-248P-51P	Solder	Male Pin Plug	Brass	-65 ░C	165 °C	Snap-On	Gold	Gold	Gold	50 Ohms	6000 MHz	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	AFI	1	Surface Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AFI Connector Plug, Male Pin 50 Ohms Surface Mount, Through Hole Solder
