MUSBC111M5

Active

Amphenol ICC (Commercial Products)

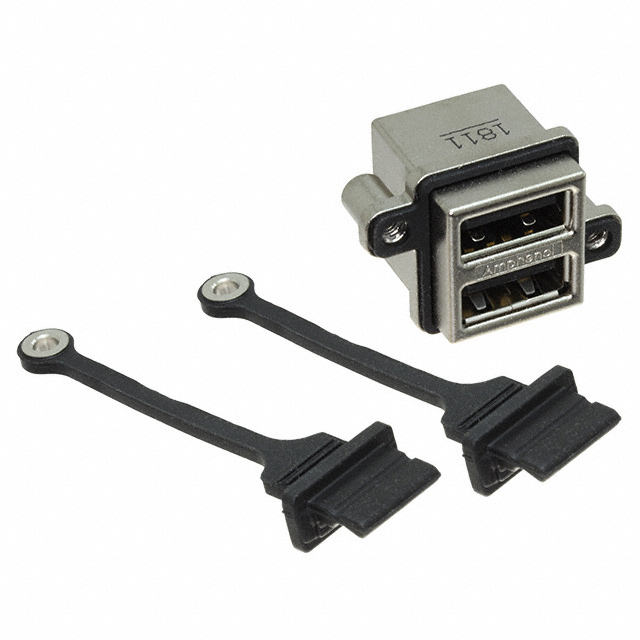

CONN RCPT USB2.0 A STACK PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MUSBC111M5

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB2.0 A STACK PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBC111M5

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Cover
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Flange, Horizontal
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Contacts	8
Number of Ports	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

MUSBC Series

Part	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Mating Cycles	Number of Ports	Shielding	Connector Type	Features	Contact Finish	Specifications	Termination	Ingress Protection	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Contacts	Current Rating (Amps)	Shell/Shielding Material	Material Flammability Rating	Mounting Feature
Amphenol ICC (Commercial Products) MUSB-C211-30	USB-A (USB TYPE-A) Receptacle (2)	Panel Mount Right Angle Through Hole	14 Pos Male Pins Rectangular Connector
Amphenol ICC (Commercial Products) MUSBC11135		Panel Mount Right Angle Through Hole		1500	2	Shielded	Stacked USB-A (USB TYPE-A)	Cover	Gold	USB 2.0	Solder	IP67 - Dust Tight Waterproof	Black	-40 °C	105 ░C	Receptacle	8	1.5 A	Copper Alloy	UL94 V-0	Flange Horizontal
Amphenol ICC (Commercial Products) MUSBC21135	USB-A (USB TYPE-A) Receptacle (2)	Panel Mount Right Angle Through Hole	14 Pos Male Pins Rectangular Connector
Amphenol ICC (Commercial Products) MUSBC511N0		Panel Mount Through Hole		1500	1	Shielded	Stacked USB-A (USB TYPE-A)		Gold	USB 2.0	Solder	IP67 - Dust Tight Waterproof	Black	-40 °C	105 ░C	Receptacle	8	1.5 A	Copper Alloy	UL94 V-0	Flange Vertical
Amphenol ICC (Commercial Products) MUSBC211M5	USB-A (USB TYPE-A) Receptacle (2)	Panel Mount Right Angle Through Hole	14 Pos Male Pins Rectangular Connector
Amphenol ICC (Commercial Products) MUSBC111M5		Panel Mount Right Angle Through Hole		1500	2	Shielded	Stacked USB-A (USB TYPE-A)	Cover	Gold	USB 2.0	Solder	IP67 - Dust Tight Waterproof	Black	-40 °C	105 ░C	Receptacle	8	1.5 A	Copper Alloy	UL94 V-0	Flange Horizontal
Amphenol ICC (Commercial Products) MUSBC511N5		Panel Mount Through Hole		1500	1	Shielded	Stacked USB-A (USB TYPE-A)	Cover	Gold	USB 2.0	Solder	IP67 - Dust Tight Waterproof	Black	-40 °C	105 ░C	Receptacle	8	1.5 A	Copper Alloy	UL94 V-0	Flange Vertical
Amphenol ICC (Commercial Products) MUSB-C311-30	USB-A (USB TYPE-A) Receptacle (2)	Board Mounted	Receptacle (2) USB-A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.13
		10	$ 14.29
		25	$ 13.74
		50	$ 13.19
		100	$ 12.46
		250	$ 11.36
		500	$ 10.63
		1000	$ 9.75

Description

General part information

MUSBC Series

USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Panel Mount, Through Hole, Right Angle
