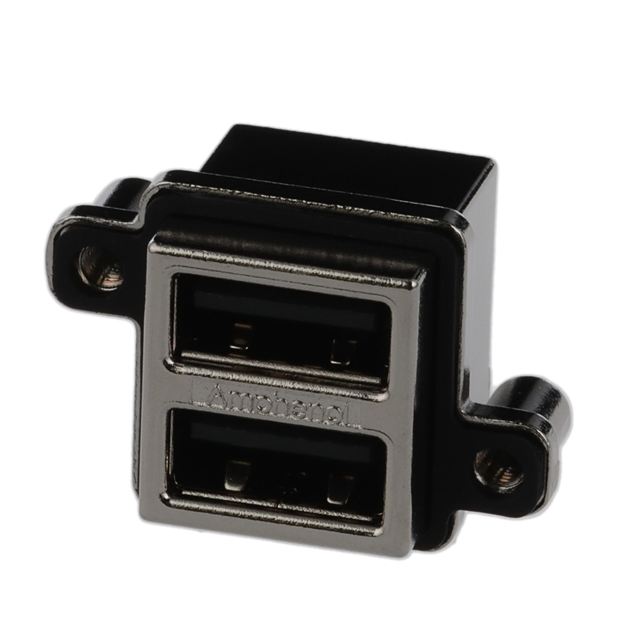

MUSBC511N0
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 A STACKED PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MUSBC511N0
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 A STACKED PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSBC511N0 |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Flange, Vertical |
| Mounting Type | Through Hole, Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.04 | |
| 10 | $ 13.90 | |||
| 25 | $ 13.17 | |||
| 50 | $ 12.98 | |||
| 100 | $ 11.46 | |||
| 250 | $ 10.69 | |||
| 500 | $ 10.46 | |||
| 1000 | $ 9.93 | |||
Description
General part information
MUSBC Series
USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Panel Mount, Through Hole
