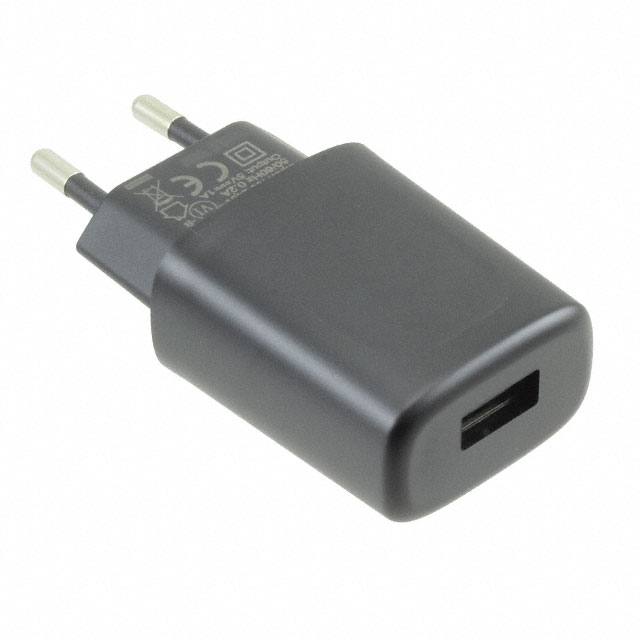

DA5-050EU-B
ObsoleteARTESYN / Advanced Energy
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DA5-050EU-B
ObsoleteARTESYN / Advanced Energy
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA5-050EU-B |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | DEMKO CB, UL, CSA, CCC, PSE, CE |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | CEE 7/16 |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 5 W |
| Region Utilized | Europe |
| Size / Dimension [x] | 2.45 in |
| Size / Dimension [x] | 62.3 mm |
| Size / Dimension [y] | 1.56 in |
| Size / Dimension [y] | 39.5 mm |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 25 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.29 | |
| 5 | $ 6.04 | |||
| 10 | $ 5.93 | |||
| 25 | $ 5.79 | |||
| 50 | $ 5.69 | |||
| 100 | $ 5.59 | |||
| 250 | $ 5.47 | |||
| 500 | $ 5.37 | |||
Description
General part information
DA5-050 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
