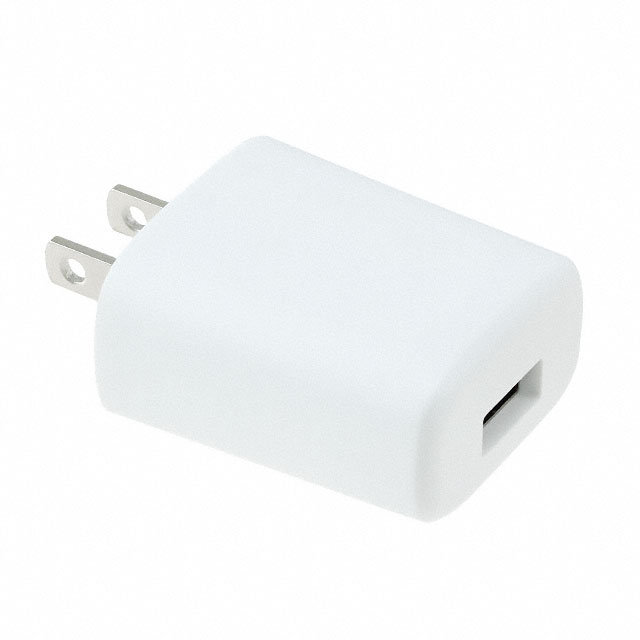

DA5-050US-W

Obsolete

ARTESYN / Advanced Energy

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	DA5-050US-W

Applications	ITE (Commercial)
Approval Agency	DEMKO CB, UL, CSA, CCC, PSE, CE
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	44 mm
Size / Dimension [x]	1.73 in
Size / Dimension [y]	39.5 mm
Size / Dimension [y]	1.56 in
Size / Dimension [z]	25 mm
Size / Dimension [z]	0.98 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Applications	Approval Agency	Efficiency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	No Load Power Consumption [Max]	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Form	Voltage - Output	Input Type	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]
ARTESYN / Advanced Energy DA5-050US-W	ITE (Commercial)	CCC CE CSA DEMKO CB PSE UL	CoC Tier 2 Level VI	1 A	25 mm	39.5 mm	1.56 in	0.98 in	44 mm	1.73 in	75 mW	NEMA 1-15P	-10 °C	40 °C	5 W	Wall Mount (Class II)	5 V	Fixed Blade	North America	90 VAC	264 VAC
ARTESYN / Advanced Energy DA5-050EU-B	ITE (Commercial)	CCC CE CSA DEMKO CB PSE UL	CoC Tier 2 Level VI	1 A	25 mm	39.5 mm	1.56 in	0.98 in	62.3 mm	2.45 in	75 mW	CEE 7/16	-10 °C	40 °C	5 W	Wall Mount (Class II)	5 V	Fixed Blade	Europe	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
