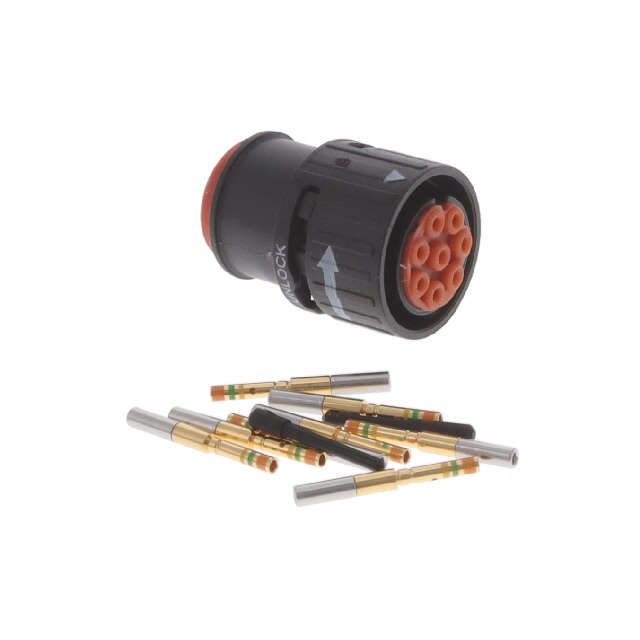

SJS831100

Active

AMPHENOL PCD

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

SJS831100

Active

AMPHENOL PCD

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJS831100

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Sealed
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7
Termination	Crimp

SJS83 Series

Part	Material Flammability Rating	Features	Contact Size	Contact Shape	Shell Material	Number of Positions	Mounting Type	Connector Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Note	Fastening Type	Shell Size - Insert	Housing Color	Shielding	Orientation	Ingress Protection	Primary Material	Contact Finish - Mating	Termination	Mounting Feature	Current Rating (Amps)
AMPHENOL PCD SJS830101	UL94 V-0	Coupling Nut	22D	Circular	Polyamide (PA66) Nylon 6/6	8	Free Hanging (In-Line)	Plug Housing	For Female Sockets	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Green	Unshielded	B	IP67 - Dust Tight Waterproof
AMPHENOL PCD SJS830401		Dust Cap			Polyamide (PA66) Nylon 6/6	4	Free Hanging (In-Line)	Male Pins Receptacle		155 °C	-65 ░C			Bayonet Lock	8				Environment Sealed	Plastic	Gold	Crimp
AMPHENOL PCD SJS830311		Dust Cap			Polyamide (PA66) Nylon 6/6		Free Hanging (In-Line)	Female Sockets Plug		125 °C	-65 ░C			Bayonet Lock	8				Environment Sealed	Plastic	Gold	Crimp
AMPHENOL PCD SJS830220	UL94 V-0		22D	Circular	Polyamide (PA66) Nylon 6/6	8		Receptacle Housing	For Male Pins	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Black	Unshielded	A	IP67 - Dust Tight Waterproof				Flange
AMPHENOL PCD SJS830231					Polyamide (PA66) Nylon 6/6		Free Hanging (In-Line)	Male Pins Receptacle		125 °C	-65 ░C			Bayonet Lock	5				Environment Sealed	Plastic	Gold	Crimp
AMPHENOL PCD SJS830251					Polyamide (PA66) Nylon 6/6	2	Free Hanging (In-Line)	Female Sockets Plug		125 °C	-65 ░C			Bayonet Lock	5				Environment Sealed	Plastic	Gold	Crimp		5 A
AMPHENOL PCD SJS831100					Polyamide (PA66) Nylon 6/6	8	Free Hanging (In-Line)	Female Sockets Plug		125 °C	-65 ░C			Bayonet Lock	7			A	Environment Sealed	Plastic	Gold	Crimp		5 A
AMPHENOL PCD SJS830221	UL94 V-0		22D	Circular	Polyamide (PA66) Nylon 6/6	8		Receptacle Housing	For Male Pins	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Green	Unshielded	B	IP67 - Dust Tight Waterproof				Flange
AMPHENOL PCD SJS830222	UL94 V-0		22D	Circular	Polyamide (PA66) Nylon 6/6	8		Receptacle Housing	For Male Pins	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Yellow	Unshielded	C	IP67 - Dust Tight Waterproof				Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.82
		10	$ 40.12
		25	$ 38.39
		50	$ 37.15
		100	$ 35.91
		250	$ 33.93

Description

General part information

SJS83 Series

8 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

No documents available
