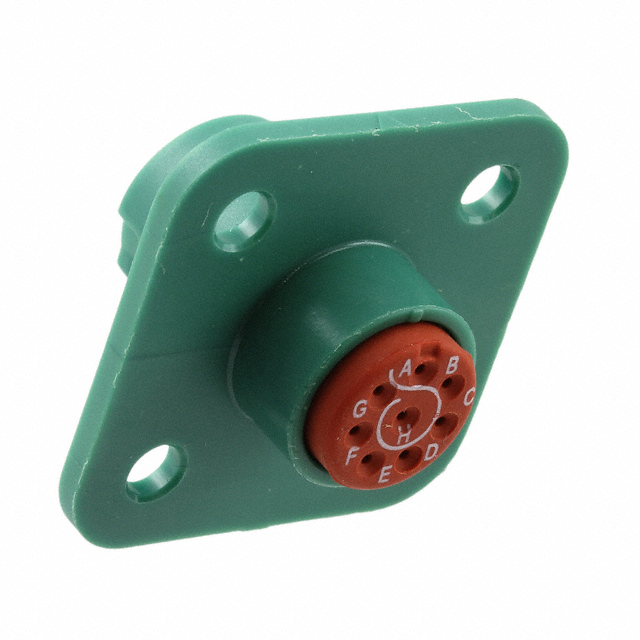

SJS830221

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 8POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

SJS830221

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 8POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJS830221

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Green
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	B
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7
Shielding	Unshielded
Type	For Male Pins

SJS83 Series

Part	Material Flammability Rating	Features	Contact Size	Contact Shape	Shell Material	Number of Positions	Mounting Type	Connector Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Note	Fastening Type	Shell Size - Insert	Housing Color	Shielding	Orientation	Ingress Protection	Primary Material	Contact Finish - Mating	Termination	Mounting Feature	Current Rating (Amps)
AMPHENOL PCD SJS830101	UL94 V-0	Coupling Nut	22D	Circular	Polyamide (PA66) Nylon 6/6	8	Free Hanging (In-Line)	Plug Housing	For Female Sockets	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Green	Unshielded	B	IP67 - Dust Tight Waterproof
AMPHENOL PCD SJS830401		Dust Cap			Polyamide (PA66) Nylon 6/6	4	Free Hanging (In-Line)	Male Pins Receptacle		155 °C	-65 ░C			Bayonet Lock	8				Environment Sealed	Plastic	Gold	Crimp
AMPHENOL PCD SJS830311		Dust Cap			Polyamide (PA66) Nylon 6/6		Free Hanging (In-Line)	Female Sockets Plug		125 °C	-65 ░C			Bayonet Lock	8				Environment Sealed	Plastic	Gold	Crimp
AMPHENOL PCD SJS830220	UL94 V-0		22D	Circular	Polyamide (PA66) Nylon 6/6	8		Receptacle Housing	For Male Pins	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Black	Unshielded	A	IP67 - Dust Tight Waterproof				Flange
AMPHENOL PCD SJS830231					Polyamide (PA66) Nylon 6/6		Free Hanging (In-Line)	Male Pins Receptacle		125 °C	-65 ░C			Bayonet Lock	5				Environment Sealed	Plastic	Gold	Crimp
AMPHENOL PCD SJS830251					Polyamide (PA66) Nylon 6/6	2	Free Hanging (In-Line)	Female Sockets Plug		125 °C	-65 ░C			Bayonet Lock	5				Environment Sealed	Plastic	Gold	Crimp		5 A
AMPHENOL PCD SJS831100					Polyamide (PA66) Nylon 6/6	8	Free Hanging (In-Line)	Female Sockets Plug		125 °C	-65 ░C			Bayonet Lock	7			A	Environment Sealed	Plastic	Gold	Crimp		5 A
AMPHENOL PCD SJS830221	UL94 V-0		22D	Circular	Polyamide (PA66) Nylon 6/6	8		Receptacle Housing	For Male Pins	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Green	Unshielded	B	IP67 - Dust Tight Waterproof				Flange
AMPHENOL PCD SJS830222	UL94 V-0		22D	Circular	Polyamide (PA66) Nylon 6/6	8		Receptacle Housing	For Male Pins	125 °C	-65 ░C	Crimp	Contacts Not Included	Bayonet Lock	7	Yellow	Unshielded	C	IP67 - Dust Tight Waterproof				Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.90
		10	$ 27.93
		25	$ 26.72
		50	$ 25.86
		100	$ 25.00
		250	$ 23.62

Description

General part information

SJS83 Series

8 Position Circular Connector Receptacle Housing Panel Mount
