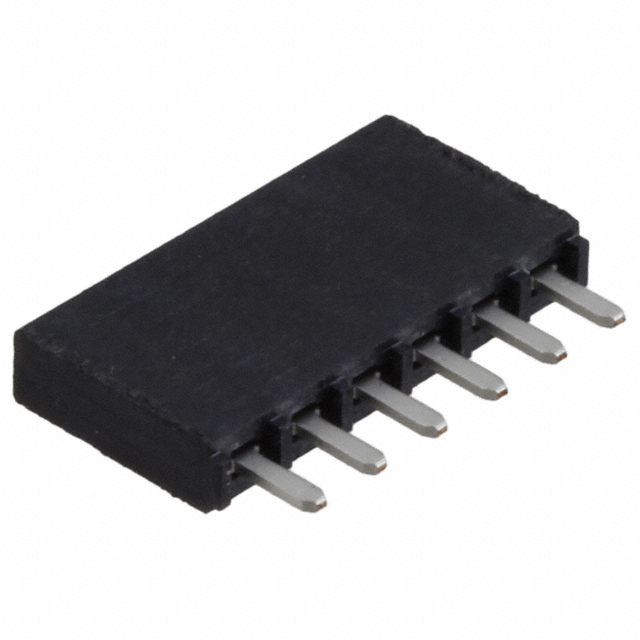

4320-01074-0

Obsolete

Murata Power Solutions Inc.

CONN RCPT 6POS TIN PCB

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CONN RCPT 6POS TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	4320-01074-0

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Termination	Solder

Part	Insulation Height	Insulation Height	Contact Material	Termination	Contact Type	Number of Positions	Insulation Material	Fastening Type	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Connector Type	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Rows	Insulation Color	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Note	For Use With/Related Products	Specifications	Accessory Type
Murata Power Solutions Inc. 4320-01074-0	0.335 "	8.51 mm	Phosphor Bronze	Solder	Female Socket	6	Liquid Crystal Polymer (LCP)	Push-Pull	Square	All	UL94 V-0	Receptacle	2.54 mm	0.1 in	Through Hole	1	Black	Tin	3 A	-65 ░C	105 ░C
Murata Power Solutions Inc. 4320-01069-0					Female Socket	6									Free Hanging (In-Line)	1						Crimp	Contacts Not Included
Murata Power Solutions Inc. 4320-01072-0																								DMS Series	12 pin	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Receptacle Connector Through Hole Tin
