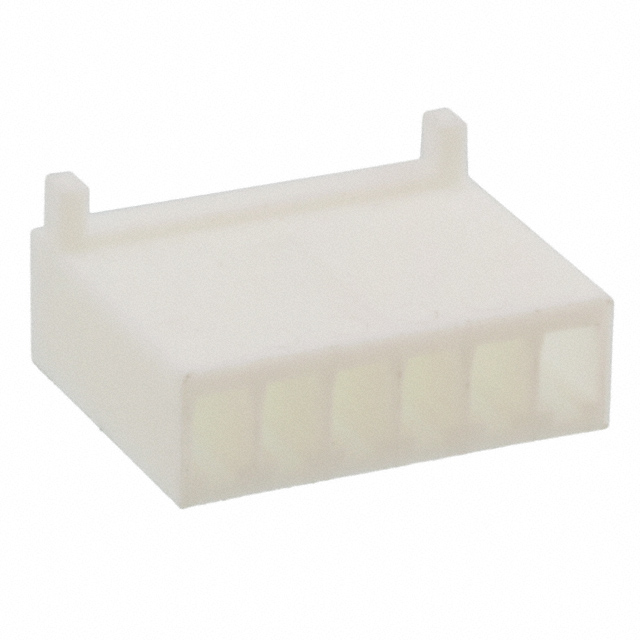

4320-01069-0

Obsolete

Murata Power Solutions Inc.

CONN HSG 6POS

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CONN HSG 6POS

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Height	Insulation Height	Contact Material	Termination	Contact Type	Number of Positions	Insulation Material	Fastening Type	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Connector Type	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Rows	Insulation Color	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Note	For Use With/Related Products	Specifications	Accessory Type
Murata Power Solutions Inc. 4320-01074-0	0.335 "	8.51 mm	Phosphor Bronze	Solder	Female Socket	6	Liquid Crystal Polymer (LCP)	Push-Pull	Square	All	UL94 V-0	Receptacle	2.54 mm	0.1 in	Through Hole	1	Black	Tin	3 A	-65 ░C	105 ░C
Murata Power Solutions Inc. 4320-01069-0					Female Socket	6									Free Hanging (In-Line)	1						Crimp	Contacts Not Included
Murata Power Solutions Inc. 4320-01072-0																								DMS Series	12 pin	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.21

General part information

6 Rectangular Connectors - Housings

Technical documentation and resources

No documents available
