APH-HDBNCP-T-50

Active

Amphenol RF

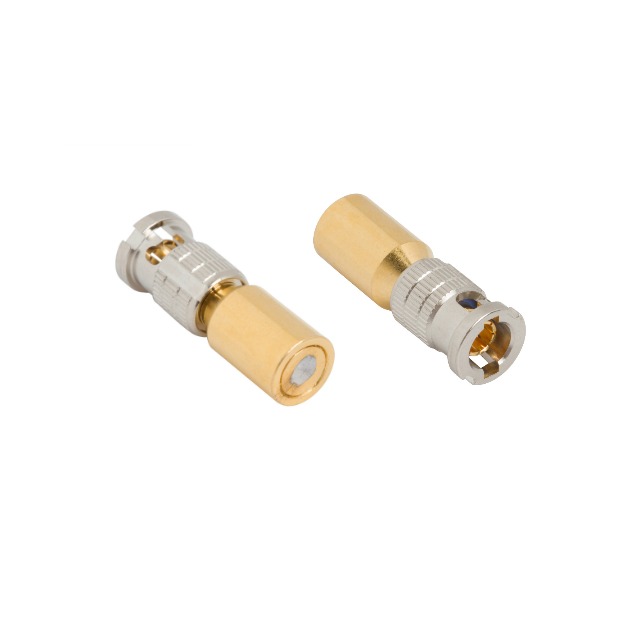

CONN TERMINATR PLUG BNC HD 50OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN TERMINATR PLUG BNC HD 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	APH-HDBNCP-T-50

Body Finish	Gold
Body Material	Brass
Connector Style	HD, BNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Finish	Center Contact Plating	Impedance	Mating Cycles	Adapter Series	Body Material	Fastening Type	Convert To (Adapter End)	Style	Conversion Type	Center Contact Material	Adapter Type	Dielectric Material	Mounting Type	Convert From (Adapter End)	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish	Connector Style	Contact Material
Amphenol RF APH-HDBNCP-J	Nickel	Gold	75 Ohms	500	BNC HD HD to BNC	Brass	Bayonet Lock	BNC HD Jack Female Socket	Straight	Same Series	Beryllium Copper	Plug to Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	BNC HD Plug Male Pin	4 GHz	-65 ░C	165 °C
Amphenol RF APH-HDBNCP-T-50	Gold		50 Ohms			Brass							Polytetrafluoroethylene (PTFE)	Cap Free Hanging		6000 MHz			Male Pin Plug	Gold	BNC HD	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin BNC, HD 50 Ohms

Technical documentation and resources

No documents available
