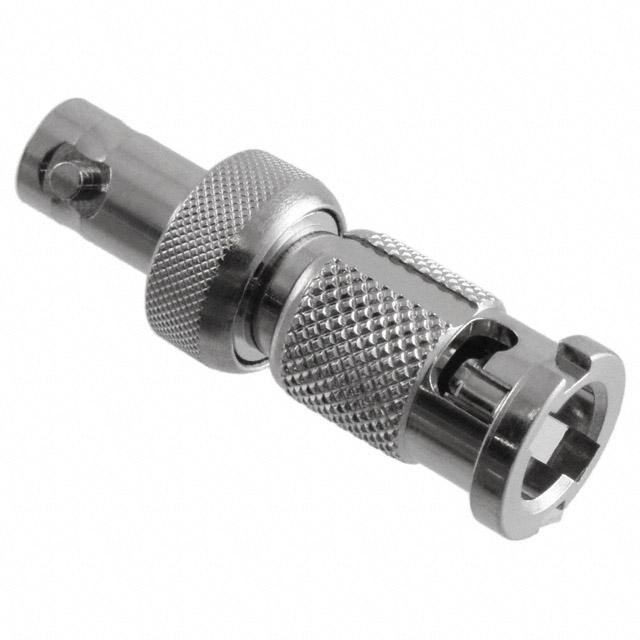

ADAPTER; HD-BNC MALE,HD-BNC FEMALE; INSULATION: PTFE; 75Ω; BRASS

Search across all available documentation for this part.

Active

Amphenol RF

ADAPTER; HD-BNC MALE,HD-BNC FEMALE; INSULATION: PTFE; 75Ω; BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	APH-HDBNCP-J

Adapter Series	BNC, HD to BNC, HD
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC HD Plug, Male Pin
Convert To (Adapter End)	BNC HD Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Finish	Center Contact Plating	Impedance	Mating Cycles	Adapter Series	Body Material	Fastening Type	Convert To (Adapter End)	Style	Conversion Type	Center Contact Material	Adapter Type	Dielectric Material	Mounting Type	Convert From (Adapter End)	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish	Connector Style	Contact Material
Amphenol RF APH-HDBNCP-J	Nickel	Gold	75 Ohms	500	BNC HD HD to BNC	Brass	Bayonet Lock	BNC HD Jack Female Socket	Straight	Same Series	Beryllium Copper	Plug to Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	BNC HD Plug Male Pin	4 GHz	-65 ░C	165 °C
Amphenol RF APH-HDBNCP-T-50	Gold		50 Ohms			Brass							Polytetrafluoroethylene (PTFE)	Cap Free Hanging		6000 MHz			Male Pin Plug	Gold	BNC HD	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC HD Plug, Male Pin To BNC HD Jack, Female Socket 75 Ohms
