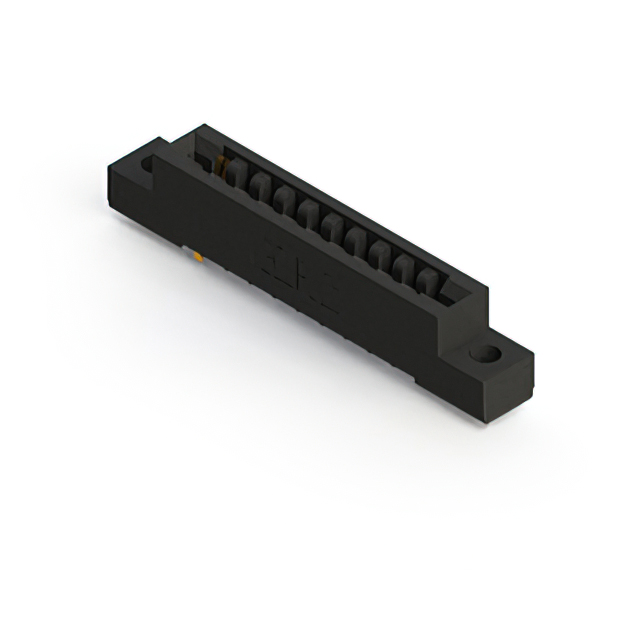

357-020-540-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
357-020-540-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-020-540-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
357-020 Series
...
| Part | Pitch [x] | Pitch [x] | Material - Insulation | Read Out | Contact Material | Color | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Features | Contact Finish | Number of Positions | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Termination | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Semi Bellows | Non Specified - Dual Edge | Card Extender | Tin | 20 | 2 | -40 °C | 105 ░C | Female | Solder Eyelet(s) | 2 | ||||||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Semi Bellows | Non Specified - Dual Edge | Card Guides | Gold | 20 | 2 | -40 °C | 105 ░C | Female | Solder Wire Wrap | 2 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Semi Bellows | Non Specified - Dual Edge | Gold | 20 | 2 | -40 °C | 105 ░C | Female | Wire Wrap | 2 | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Surface Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Non Specified - Dual Edge | Tin | 40 | 1 | -40 °C | 105 ░C | Female | Solder Eyelet(s) | 2 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | 20 | 20 | 20 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Copper Alloy | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Non Specified - Single Edge | Tin | 20 | 1 | -40 °C | 105 ░C | Female | Wire Wrap | 1 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | 20 | 20 | 20 | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Copper Alloy | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Non Specified - Single Edge | Card Guides | Gold | 20 | 1 | -40 °C | 105 ░C | Female | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 20 | 20 | |||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Copper Alloy | Black | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | Non Specified - Single Edge | Card Guides | Tin | 20 | 1 | -40 °C | 105 ░C | Female | Solder | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 20 | 20 | 20 | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Semi Bellows | Non Specified - Dual Edge | Card Guides | Tin | 20 | 2 | -40 °C | 105 ░C | Female | Wire Wrap | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Semi Bellows | Non Specified - Dual Edge | Card Guides | Gold | 20 | 2 | -40 °C | 105 ░C | Female | Solder | 2 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Copper Alloy | Black | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Semi Bellows | Non Specified - Dual Edge | Card Extender | Gold | 20 | 2 | -40 °C | 105 ░C | Female | Solder Eyelet(s) | 2 | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
