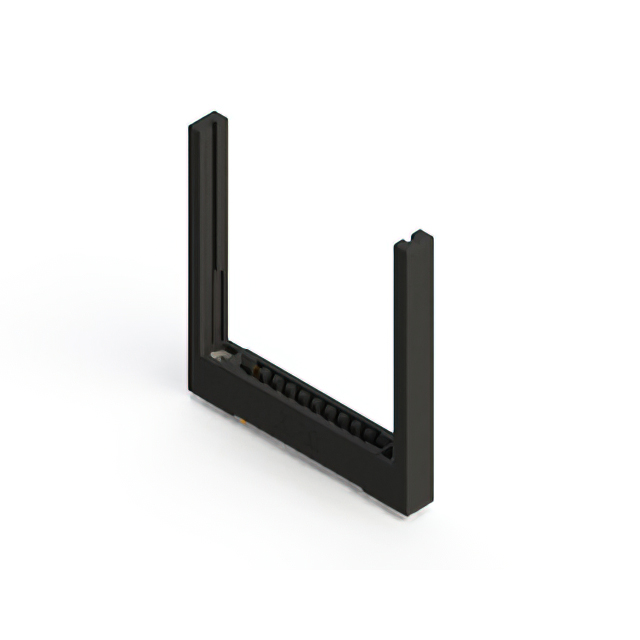

357-020-558-268

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-020-558-268

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-020-558-268

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

357-020 Series

...

Part	Pitch [x]	Pitch [x]	Material - Insulation	Read Out	Contact Material	Color	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Contact Type	Card Type	Features	Contact Finish	Number of Positions	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 357-020-455-201	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	10	Semi Bellows	Non Specified - Dual Edge	Card Extender	Tin	20	2	-40 °C	105 ░C	Female	Solder Eyelet(s)	2
EDAC Inc. 357-020-558-268	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	10	Semi Bellows	Non Specified - Dual Edge	Card Guides	Gold	20	2	-40 °C	105 ░C	Female	Solder Wire Wrap	2	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-540-202	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	10	Semi Bellows	Non Specified - Dual Edge		Gold	20	2	-40 °C	105 ░C	Female	Wire Wrap	2	10 Áin	0.25 Ám	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 357-020-454-103	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Surface Mount	1.37 mm	0.054 "	1.78 mm	0.07 in		Semi Bellows	Non Specified - Dual Edge		Tin	40	1	-40 °C	105 ░C	Female	Solder Eyelet(s)	2			Floating Bobbin Flush Mount	2.95 mm	0.116 in	20	20	20
EDAC Inc. 357-020-447-104	0.156 in	3.96 mm	Polyester Thermoplastic	Single	Copper Alloy	Black	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in		Semi Bellows	Non Specified - Single Edge		Tin	20	1	-40 °C	105 ░C	Female	Wire Wrap	1			Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	20	20	20
EDAC Inc. 357-020-545-178	0.156 in	3.96 mm	Polyester Thermoplastic	Single	Copper Alloy	Black	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in		Semi Bellows	Non Specified - Single Edge	Card Guides	Gold	20	1	-40 °C	105 ░C	Female	Wire Wrap	1	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening			20	20	20
EDAC Inc. 357-020-458-158	0.156 in	3.96 mm	Polyester Thermoplastic	Single	Copper Alloy	Black	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in		Semi Bellows	Non Specified - Single Edge	Card Guides	Tin	20	1	-40 °C	105 ░C	Female	Solder	1			4-40 Flush Mount Threaded Insert Top Opening			20	20	20
EDAC Inc. 357-020-442-258	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	10	Semi Bellows	Non Specified - Dual Edge	Card Guides	Tin	20	2	-40 °C	105 ░C	Female	Wire Wrap	2			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-522-268	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	10	Semi Bellows	Non Specified - Dual Edge	Card Guides	Gold	20	2	-40 °C	105 ░C	Female	Solder	2	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 357-020-555-203	0.156 in	3.96 mm	Polyester Thermoplastic	Dual	Copper Alloy	Black	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	10	Semi Bellows	Non Specified - Dual Edge	Card Extender	Gold	20	2	-40 °C	105 ░C	Female	Solder Eyelet(s)	2	10 Áin	0.25 Ám	Floating Bobbin Flush Mount	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.81
Newark	Each	1	$ 13.26
		100	$ 8.96
		250	$ 8.13
		500	$ 7.32
		1000	$ 6.10

Description

General part information

357-020 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
