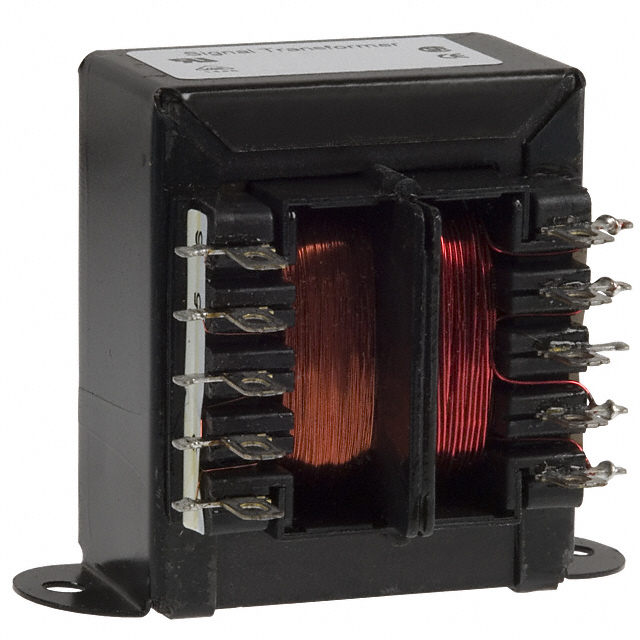

A41-25-515

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics for this part

Specification	A41-25-515

Center Tap	True
Current - Output (Max)	1.25 A, 0.13 A
Height - Seated (Max) [Max] [z]	58.7 mm
Mounting Type	Chassis Mount
Power - Max [Max]	25 VA
Primary Winding(s)	Dual
Secondary Winding(s)	Dual
Size / Dimension [x]	71.4 mm
Size / Dimension [y]	54.4 mm
Termination Style	Solder, Quick Connect
Type	Laminated Core
Voltage - Isolation	4000 Vrms
Voltage - Primary	115 V, 230 V
Voltage - Secondary (Full Load) [custom]	15 V
Voltage - Secondary (Full Load) [custom]	5 V
Weight	589.7 g
Weight	1.3 lbs

Power Transformers 50\60 Hz, Laminated Transformer w/ lead wires

Part	Voltage - Primary	Secondary Winding(s)	Primary Winding(s)	Termination Style	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Isolation	Voltage - Secondary (Full Load)	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Type	Height - Seated (Max) [Max] [z]	Mounting Type	Power - Max [Max]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Current - Output (Max)
Signal Transformer A41-80-28	115 V 230 V	Dual	Dual	Quick Connect Solder	2.8 A	5.6 A	4000 Vrms	14 V 28 V	64.3 mm	63.5 mm	2.8 lbs	1.3 kg	Laminated Core	76.2 mm	Chassis Mount	80 VA
Signal Transformer A41-43-10L	115 V 230 V	Dual	Dual	Wire Leads			4000 Vrms		54.4 mm	79.4 mm	1.6 lbs	725.7 g	Laminated Core	68.2 mm	Chassis Mount	43 VA	4.3 A	8.6 A	5 V	10 V
Signal Transformer A41-25-515	115 V 230 V	Dual	Dual	Quick Connect Solder			4000 Vrms		54.4 mm	71.4 mm	1.3 lbs	589.7 g	Laminated Core	58.7 mm	Chassis Mount	25 VA			5 V	15 V	0.13 A 1.25 A
