09380052701

Active

HARTING Technology Group

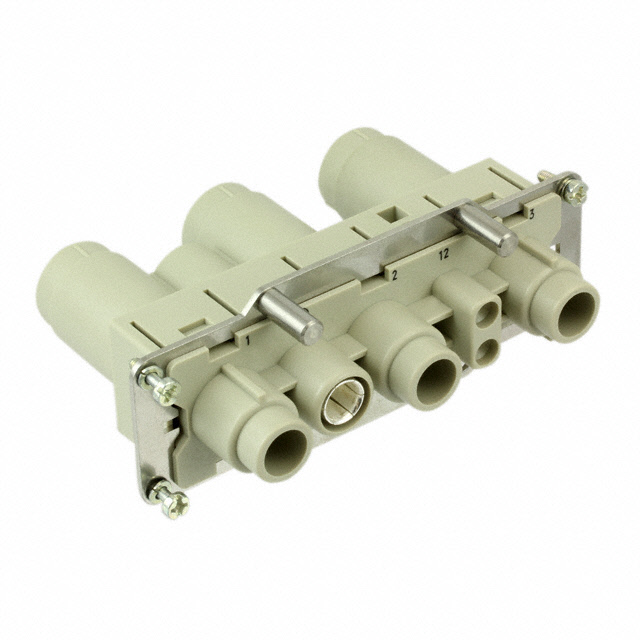

HAN K 3/2 POS. FEMALE INSERT SCREW TERM. ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN K 3/2 POS. FEMALE INSERT SCREW TERM. ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09380052701

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	3
Number of Positions [custom]	Ground
Number of Positions [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24HPR
Termination Style	Screw

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Contact Finish	Color	Termination Style	Contact Material	Material Flammability Rating	Gender	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
HARTING Technology Group 09380052622	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Male
HARTING Technology Group 09380052722	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Female
HARTING Technology Group 09380052702	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Female	3	Ground	2
HARTING Technology Group 09380052601	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Male	3	Ground	2
HARTING Technology Group 09380052701	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Female	3	Ground	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 3+2+Ground Position Screw
