09380052702

Active

HARTING Technology Group

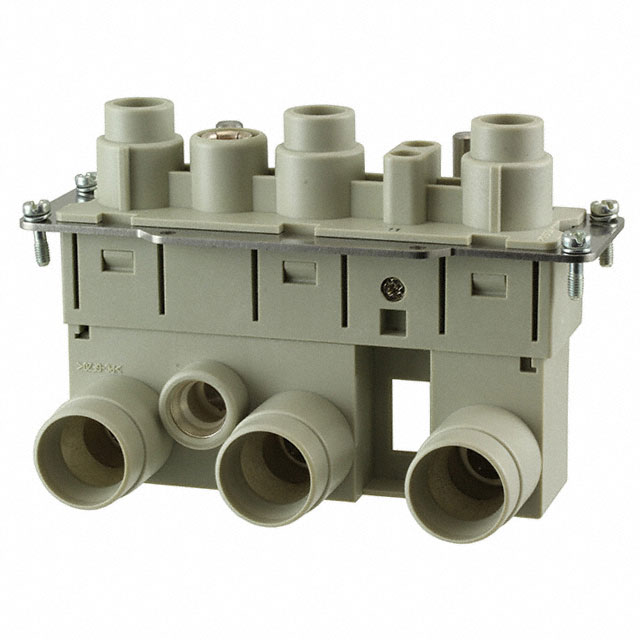

INSERT FEMALE 3+2POS+1GND SCREW

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT FEMALE 3+2POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	09380052702

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	3
Number of Positions [custom]	Ground
Number of Positions [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24HPR
Termination Style	Screw

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Contact Finish	Color	Termination Style	Contact Material	Material Flammability Rating	Gender	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
HARTING Technology Group 09380052622	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Male
HARTING Technology Group 09380052722	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Female
HARTING Technology Group 09380052702	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Female	3	Ground	2
HARTING Technology Group 09380052601	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Male	3	Ground	2
HARTING Technology Group 09380052701	125 °C	-40 °C	24HPR	Polycarbonate (PC)	Silver	Gray	Screw	Copper Alloy	UL94 V-0	Female	3	Ground	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 3+2+Ground Position Screw
