OMNI-UNI-34-75

Active

Wakefield-Vette

HEATSINK TO-247 TO-264 TO-220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

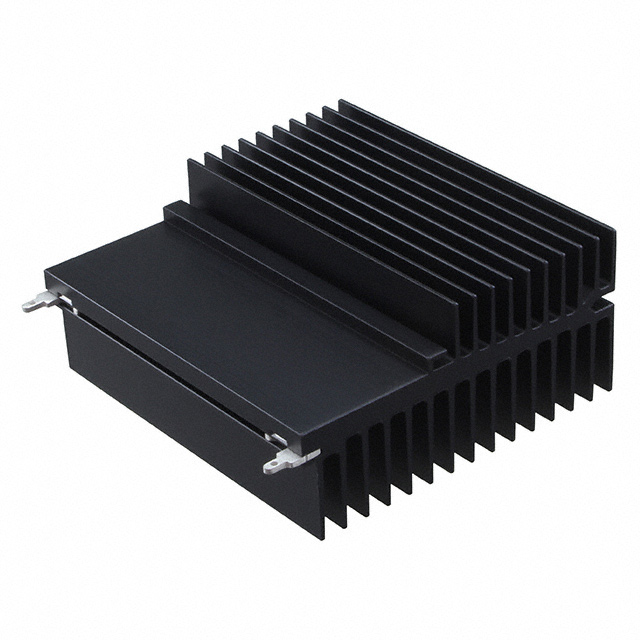

OMNI-UNI-34-75

Active

Wakefield-Vette

HEATSINK TO-247 TO-264 TO-220

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OMNI-UNI-34-75

Attachment Method	Clip, Solder Foot
Fin Height [z]	2.953 in
Fin Height [z]	75 mm
Length	2.953 in
Length	75 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-247, TO-264, TO-220
Shape	Rectangular, Fins
Type	Board Level, Vertical
Width	34 mm
Width [x]	1.339 in

OMNI-UN Series

Part	Width [y]	Width [y]	Fin Height	Fin Height	Length	Length	Package Cooled	Material	Shape	Attachment Method	Type	Material Finish	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Width	Width
Wakefield-Vette OMNI-UNI-18-75	18.03 mm	0.71 "	38.1 mm	1.5 in	2.953 in	75 mm	TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized
Wakefield-Vette OMNI-UNI-27-50	27 mm	1.063 in					TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized	1.969 in	50 mm	50 mm	1.969 in
Wakefield-Vette OMNI-UNI-41-75					2.953 in	75 mm	TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			62.99 mm	2.48 in	1.614 in	41 mm
Wakefield-Vette OMNI-UNI-30-25-D			60 mm	2.362 in	0.984 in	25 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized							30 mm	1.181 in
Wakefield-Vette OMNI-UNI-40-25-D					0.984 in	25 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.575 in	40 mm
Wakefield-Vette OMNI-UNI-34-75					2.953 in	75 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.339 in		34 mm
Wakefield-Vette OMNI-UNI-30-75-D			60 mm	2.362 in	2.953 in	75 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized							30 mm	1.181 in
Wakefield-Vette OMNI-UNI-40-75-D					2.953 in	75 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.575 in	40 mm
Wakefield-Vette OMNI-UNI-40-50-D							TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized	1.969 in	50 mm	75 mm	2.953 in	1.575 in	40 mm
Wakefield-Vette OMNI-UNI-34-25					0.984 in	25 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.339 in		34 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.00
		10	$ 5.54

Description

General part information

OMNI-UN Series

Heat Sink TO-220, TO-247, TO-264 Aluminum Board Level, Vertical
