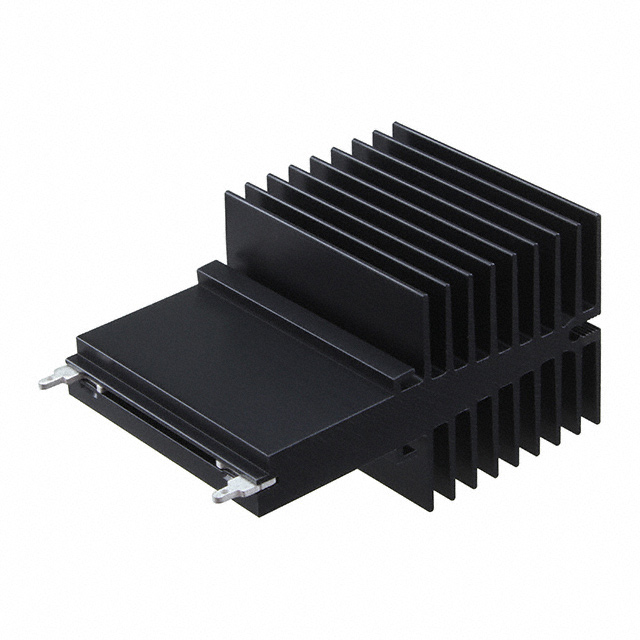

OMNI-UNI-40-50-D

Active

Wakefield-Vette

HEATSINK TO-247 TO-264 TO-220

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OMNI-UNI-40-50-D

Attachment Method	Clip, Solder Foot
Fin Height [z]	2.953 in
Fin Height [z]	75 mm
Length [x]	1.969 in
Length [x]	50 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-247, TO-264, TO-220
Shape	Rectangular, Fins
Type	Board Level, Vertical
Width [x]	1.575 in
Width [x]	40 mm

OMNI-UN Series

Part	Width [y]	Width [y]	Fin Height	Fin Height	Length	Length	Package Cooled	Material	Shape	Attachment Method	Type	Material Finish	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Width	Width
Wakefield-Vette OMNI-UNI-18-75	18.03 mm	0.71 "	38.1 mm	1.5 in	2.953 in	75 mm	TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized
Wakefield-Vette OMNI-UNI-27-50	27 mm	1.063 in					TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized	1.969 in	50 mm	50 mm	1.969 in
Wakefield-Vette OMNI-UNI-41-75					2.953 in	75 mm	TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			62.99 mm	2.48 in	1.614 in	41 mm
Wakefield-Vette OMNI-UNI-30-25-D			60 mm	2.362 in	0.984 in	25 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized							30 mm	1.181 in
Wakefield-Vette OMNI-UNI-40-25-D					0.984 in	25 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.575 in	40 mm
Wakefield-Vette OMNI-UNI-34-75					2.953 in	75 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.339 in		34 mm
Wakefield-Vette OMNI-UNI-30-75-D			60 mm	2.362 in	2.953 in	75 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized							30 mm	1.181 in
Wakefield-Vette OMNI-UNI-40-75-D					2.953 in	75 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.575 in	40 mm
Wakefield-Vette OMNI-UNI-40-50-D							TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized	1.969 in	50 mm	75 mm	2.953 in	1.575 in	40 mm
Wakefield-Vette OMNI-UNI-34-25					0.984 in	25 mm	TO-220 TO-247 TO-264	Aluminum	Rectangular Fins	Clip Solder Foot	Board Level Vertical	Black Anodized			75 mm	2.953 in	1.339 in		34 mm
