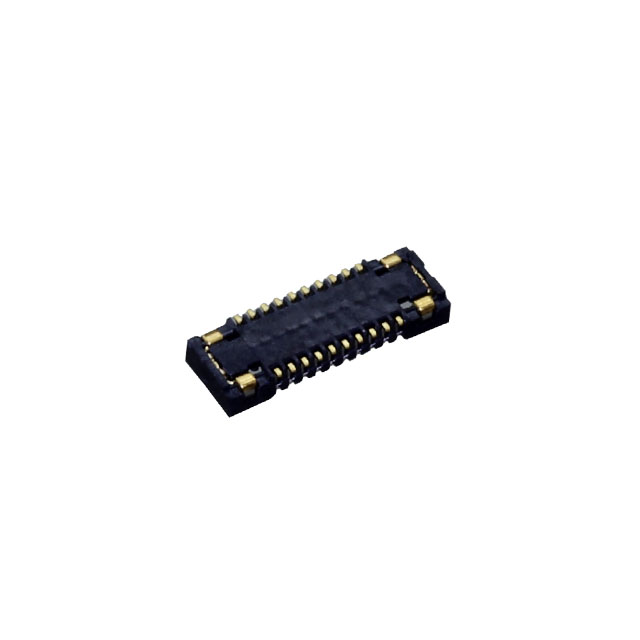

BM15FR0.8-20DS-0.35V(53)

LTB

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BM15FR0.8-20DS-0.35V(53)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.8 mm
Height Above Board [z]	0.031 in
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Number of Positions	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features	Number of Rows	Connector Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. BM15FR0.8-30DS-0.35V(79)
Hirose Electric USA, Inc. BM15FR0.8-22DP-0.35V(53)	22 positions	Gold	Surface Mount	0.024 in	0.61 mm	0.35 mm	0.014 in	0.8 mm	Solder Retention	2
Hirose Electric USA, Inc. BM15FR0.8-20DP-0.35V(53)	20	Gold	Surface Mount	0.024 in	0.61 mm	0.35 mm	0.014 in	0.8 mm	Solder Retention	2
Hirose Electric USA, Inc. BM15FR0.8-20DP-0.35V(51)	20	Gold	Surface Mount	0.024 in	0.61 mm	0.35 mm	0.014 in	0.8 mm	Solder Retention	2
Hirose Electric USA, Inc. BM15FR0.8-20DS-0.35V(53)	20	Gold	Surface Mount			0.35 mm	0.014 in	0.8 mm	Solder Retention	2	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
