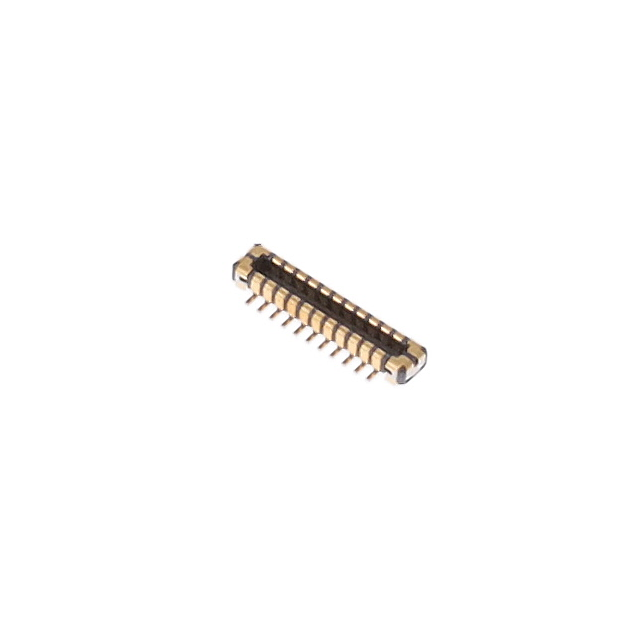

BM15FR0.8-22DP-0.35V(53)

Active

Hirose Electric USA, Inc.

CONN PLUG 22POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG 22POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features	Number of Rows	Connector Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. BM15FR0.8-30DS-0.35V(79)
Hirose Electric USA, Inc. BM15FR0.8-22DP-0.35V(53)	22 positions	Gold	Surface Mount	0.024 in	0.61 mm	0.35 mm	0.014 in	0.8 mm	Solder Retention	2
Hirose Electric USA, Inc. BM15FR0.8-20DP-0.35V(53)	20	Gold	Surface Mount	0.024 in	0.61 mm	0.35 mm	0.014 in	0.8 mm	Solder Retention	2
Hirose Electric USA, Inc. BM15FR0.8-20DP-0.35V(51)	20	Gold	Surface Mount	0.024 in	0.61 mm	0.35 mm	0.014 in	0.8 mm	Solder Retention	2
Hirose Electric USA, Inc. BM15FR0.8-20DS-0.35V(53)	20	Gold	Surface Mount			0.35 mm	0.014 in	0.8 mm	Solder Retention	2	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.61

General part information

22 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Technical documentation and resources
