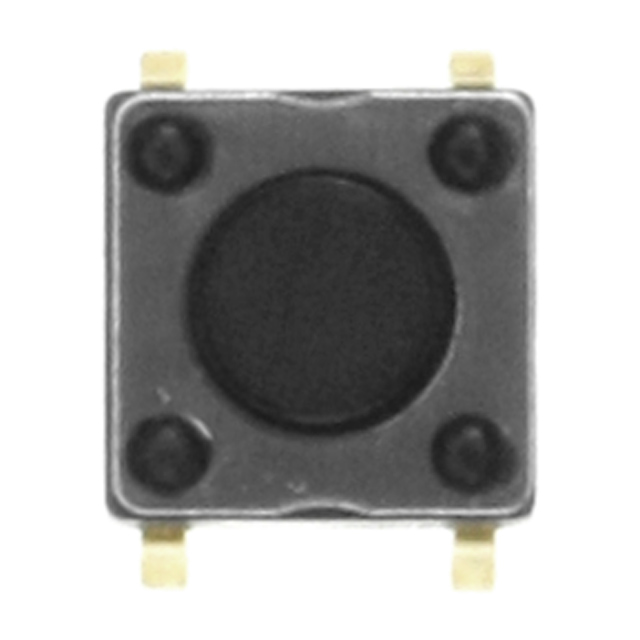

HP0215AFKP4

Active

NKK Switches

TACTILE SWITCH, SPST-NO, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF

Search across all available documentation for this part.

Active

NKK Switches

TACTILE SWITCH, SPST-NO, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF

Technical Specifications

Parameters and characteristics for this part

Specification	HP0215AFKP4

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

Part	Actuator Material	Actuator Height off PCB, Vertical [z]	Circuit	Illumination	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Travel	Actuator Orientation	Outline [y]	Outline [x]	Actuator Type	Features	Termination Style	Mechanical Life	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
NKK Switches HP0215AFKP4-S	Glass Filled Nylon Polyamide (PA)	4.3 mm	SPST-NO	Non-Illuminated	Off-Mom	-20 C	70 °C	Through Hole	0.2 mm	Top Actuated	6.2 mm	6.2 mm	Standard	Sealed - Flux Protection	PC Pin	500000 Cycles
NKK Switches HP0215AFKP4	Glass Filled Nylon Polyamide (PA)	4.3 mm	SPST-NO	Non-Illuminated	Off-Mom	-20 C	70 °C	Through Hole	0.2 mm	Top Actuated	6.2 mm	6.2 mm	Standard	Sealed - Flux Protection	PC Pin	500000 Cycles
NKK Switches HP0215AFKP2	Glass Filled Nylon Polyamide (PA)	4.3 mm	SPST-NO	Non-Illuminated	Off-Mom	-20 C	70 °C	Through Hole	0.2 mm	Top Actuated	6.2 mm	6.2 mm	Standard	Sealed - Flux Protection	PC Pin	500000 Cycles	3 VA	28 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
