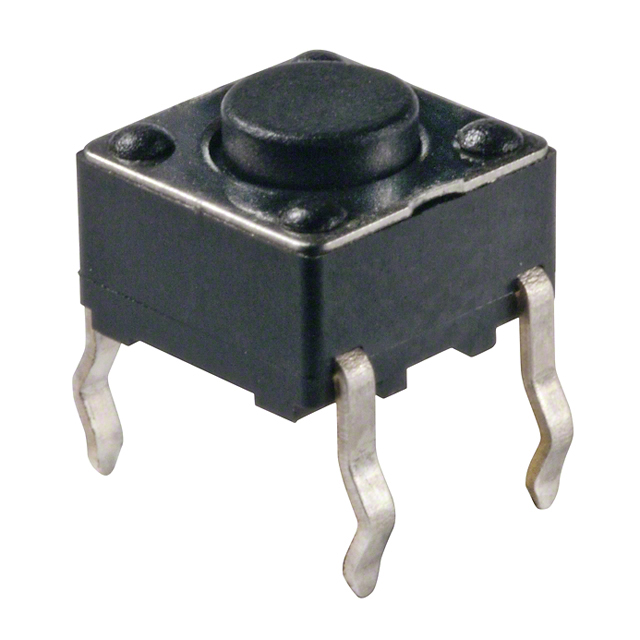

HP0215AFKP2
ActiveNKK Switches
TACTILE SWITCH, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF, 125MA AT 28VDC
Deep-Dive with AI
Search across all available documentation for this part.
HP0215AFKP2
ActiveNKK Switches
TACTILE SWITCH, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF, 125MA AT 28VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HP0215AFKP2 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 4.3 mm |
| Actuator Material | Glass Filled, Polyamide (PA), Nylon |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage [custom] | 3 VA |
| Contact Rating @ Voltage [custom] | 28 VDC |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 6.2 mm |
| Outline [y] | 6.2 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | PC Pin |
HP0215A Series
| Part | Actuator Material | Actuator Height off PCB, Vertical [z] | Circuit | Illumination | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Switch Travel | Actuator Orientation | Outline [y] | Outline [x] | Actuator Type | Features | Termination Style | Mechanical Life | Contact Rating @ Voltage [custom] | Contact Rating @ Voltage [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Glass Filled Nylon Polyamide (PA) | 4.3 mm | SPST-NO | Non-Illuminated | Off-Mom | -20 C | 70 °C | Through Hole | 0.2 mm | Top Actuated | 6.2 mm | 6.2 mm | Standard | Sealed - Flux Protection | PC Pin | 500000 Cycles | ||
NKK Switches | Glass Filled Nylon Polyamide (PA) | 4.3 mm | SPST-NO | Non-Illuminated | Off-Mom | -20 C | 70 °C | Through Hole | 0.2 mm | Top Actuated | 6.2 mm | 6.2 mm | Standard | Sealed - Flux Protection | PC Pin | 500000 Cycles | ||
NKK Switches | Glass Filled Nylon Polyamide (PA) | 4.3 mm | SPST-NO | Non-Illuminated | Off-Mom | -20 C | 70 °C | Through Hole | 0.2 mm | Top Actuated | 6.2 mm | 6.2 mm | Standard | Sealed - Flux Protection | PC Pin | 500000 Cycles | 3 VA | 28 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HP0215A Series
Tactile Switch SPST-NO Top Actuated Through Hole
