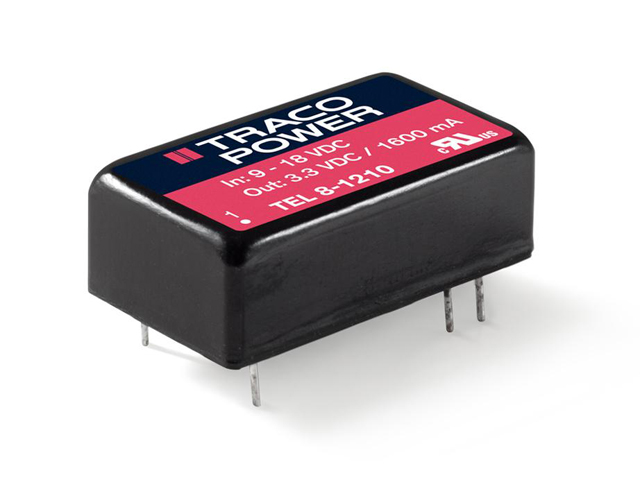

TEL 8-1212
ActiveTraco Power
DC DC CONVERTER 12V 8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEL 8-1212
ActiveTraco Power
DC DC CONVERTER 12V 8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEL 8-1212 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 665 mA |
| Efficiency | 84 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-DIP Module |
| Package / Case | 6 Leads |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 0.95 in |
| Size / Dimension [x] | 24.1 mm |
| Size / Dimension [y] | 14 mm |
| Size / Dimension [y] | 0.55 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 23.25 | |
| 10 | $ 21.37 | |||
| 25 | $ 20.66 | |||
| 50 | $ 20.14 | |||
| 100 | $ 19.64 | |||
| 250 | $ 18.99 | |||
| 500 | $ 18.51 | |||
Description
General part information
TEL 8 Series
Isolated Module DC DC Converter 1 Output 12V 665mA 9V - 18V Input
