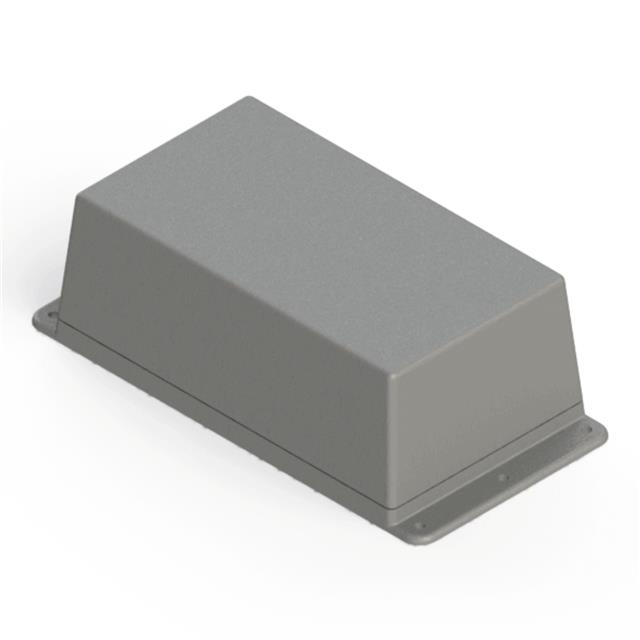

WM053,GY

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 53.3 MM, 84 MM, 168 MM, IP40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

WM053,GY

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 53.3 MM, 84 MM, 168 MM, IP40

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM053,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	2.1 in
Height [z]	53.34 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	122.47 g
Weight	0.27 lb

WM053 Series

Part	Height [z]	Height [z]	Ratings	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Features	Thickness	Thickness	Color	Design	Area (L x W)	Area (L x W)	Container Type	Material Flammability Rating
Serpac WM053R,AL	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Almond	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053R,GY	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Gray	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053I,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053RI,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053I,GY	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Gray	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053,GY	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Gray	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053RI,AL	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Almond	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053R,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053I,AL	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Almond	Cover Included	18.3 in²	118 cm²	Box	UL94 HB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.89

Description

General part information

WM053 Series

Box Plastic, ABS Gray Cover Included 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
