WM053RI,AL

Active

Serpac

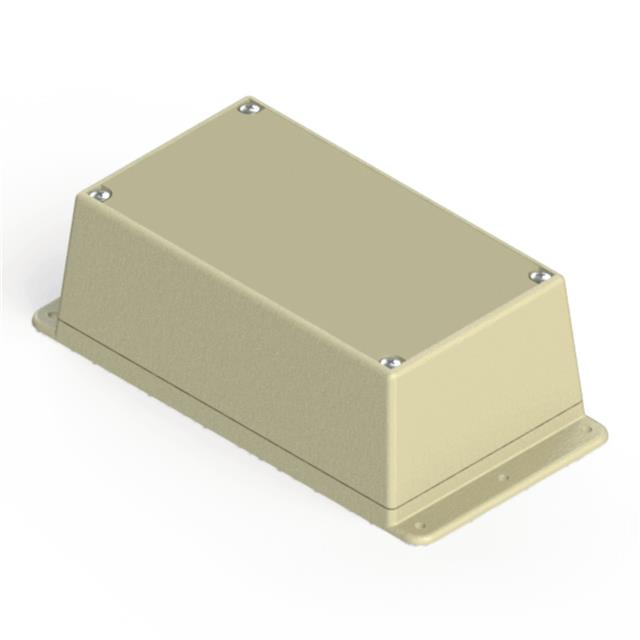

BOX ABS ALMOND 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM053RI,AL

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM053RI,AL

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Almond
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	2.1 in
Height [z]	53.34 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	122.47 g
Weight	0.27 lb

WM053 Series

Part	Height [z]	Height [z]	Ratings	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Features	Thickness	Thickness	Color	Design	Area (L x W)	Area (L x W)	Container Type	Material Flammability Rating
Serpac WM053R,AL	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Almond	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053R,GY	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Gray	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053I,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053RI,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053I,GY	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Gray	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053,GY	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Gray	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053RI,AL	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Almond	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053R,BK	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Black	Cover Included	18.3 in²	118 cm²	Box	UL94 HB
Serpac WM053I,AL	2.1 in	53.34 mm	IP40 NEMA 1	122.47 g	0.27 lb	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Mounting Flange PCB Supports Wall Mount	2.54 mm	0.1 in	Almond	Cover Included	18.3 in²	118 cm²	Box	UL94 HB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.45

Description

General part information

WM053 Series

Box Plastic, ABS Almond Cover Included 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
