M80-8970205 - M80-8970205

M80-8970205

Active
Harwin Inc.

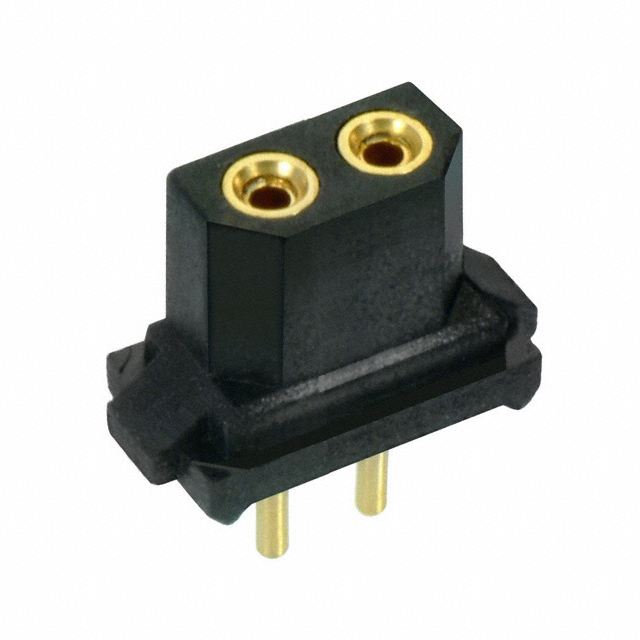

HEADER CONNECTOR,PCB MNT,PLUG,2 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001Datasheet+2
M80-8970205 - M80-8970205

M80-8970205

Active
Harwin Inc.

HEADER CONNECTOR,PCB MNT,PLUG,2 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsM80-001Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8970205
ApplicationsAutomotive, Military, General Purpose
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating12 µin
Contact Finish Thickness - Mating0.3 µm
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialBeryllium Copper
Contact ShapeCircular
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Insulation ColorBlack
Insulation Height [z]5.14 mm
Insulation Height [z]0.202 in
Insulation MaterialPolyester, Glass Filled
Mated Stacking Heights7.23 mm, 7.83 mm
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating800 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.83
32$ 2.56
128$ 2.20
512$ 1.90
1024$ 1.78
5024$ 1.53
NewarkEach 1000$ 2.33
2500$ 2.11

Description

General part information

M80-897 Series

2 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
