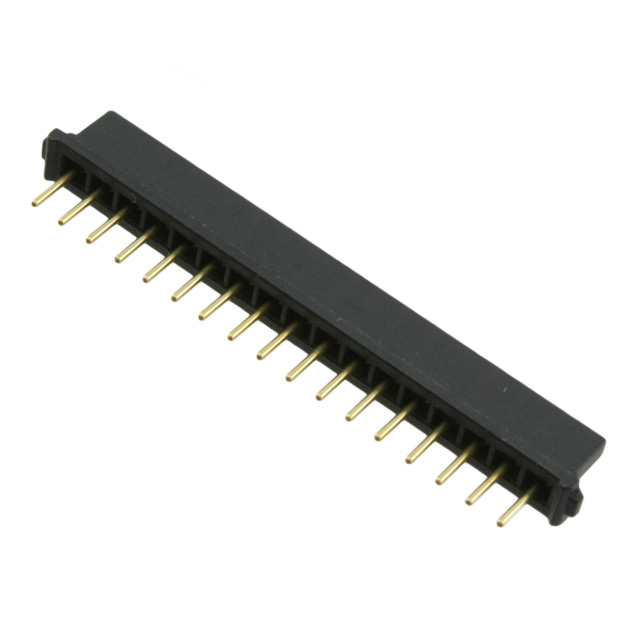

M80-8971705

Active

Harwin Inc.

HEADER CONNECTOR,PCB MNT,PLUG,17 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M80-8971705

Active

Harwin Inc.

HEADER CONNECTOR,PCB MNT,PLUG,17 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8971705

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyester, Glass Filled
Mated Stacking Heights	7.23 mm, 7.83 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-897 Series

Part	Fastening Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Termination	Insulation Color	Number of Rows	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Positions Loaded	Mated Stacking Heights	Voltage Rating	Contact Type	Contact Finish - Mating	Mounting Type	Number of Positions
Harwin Inc. M80-8970305	Locking Ramp	Board to Board Cable	0.079 in	2 mm	Polyester Glass Filled	Receptacle	0.118 in	3 mm	Gold	Solder	Black	1	Circular	12 µin	0.3 µm	5.14 mm	0.202 in	Beryllium Copper	UL94 V-0	-55 °C	125 °C	Automotive General Purpose Military	All	7.23 mm 7.83 mm	800 V	Female Socket	Gold	Through Hole
Harwin Inc. M80-8970205	Locking Ramp	Board to Board Cable	0.079 in	2 mm	Polyester Glass Filled	Receptacle	0.118 in	3 mm	Gold	Solder	Black	1	Circular	12 µin	0.3 µm	5.14 mm	0.202 in	Beryllium Copper	UL94 V-0	-55 °C	125 °C	Automotive General Purpose Military	All	7.23 mm 7.83 mm	800 V	Female Socket	Gold	Through Hole	2
Harwin Inc. M80-8971701	Locking Ramp	Board to Board Cable	0.079 in	2 mm	Polyester Glass Filled	Receptacle	0.118 in	3 mm	Tin-Lead	Solder	Black	1	Circular	12 µin	0.3 µm	5.14 mm	0.202 in	Beryllium Copper	UL94 V-0	-55 °C	125 °C	Automotive General Purpose Military	All	7.23 mm 7.83 mm	800 V	Female Socket	Gold	Through Hole
Harwin Inc. M80-8971705	Locking Ramp	Board to Board Cable	0.079 in	2 mm	Polyester Glass Filled	Receptacle	0.118 in	3 mm	Gold	Solder	Black	1	Circular	12 µin	0.3 µm	5.14 mm	0.202 in	Beryllium Copper	UL94 V-0	-55 °C	125 °C	Automotive General Purpose Military	All	7.23 mm 7.83 mm	800 V	Female Socket	Gold	Through Hole
Harwin Inc. M80-8972205	Locking Ramp	Board to Board Cable	0.079 in	2 mm	Polyester Glass Filled	Receptacle	0.118 in	3 mm	Gold	Solder	Black	1	Circular	12 µin	0.3 µm	5.14 mm	0.202 in	Beryllium Copper	UL94 V-0	-55 °C	125 °C	Automotive General Purpose Military	All	7.23 mm 7.83 mm	800 V	Female Socket	Gold	Through Hole	22 positions

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	996	$ 8.80
Newark	Each	500	$ 10.68
		1000	$ 9.37
		2500	$ 8.91

Description

General part information

M80-897 Series

17 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

M80-001

M80-0110001

Datasheet

M80, M83 Series Spec Sheet

Datasheet
